CppUmlClass

CppUmlClass generates C++ class diagrams from your source code.
It uses PlantUML and rufo commands to create the diagrams, which are displayed in your browser.

• Full support for ifdef/ifndef/if/else/elif/endif preprocessor directives
  • New: lib/ifdef_process.rb allows flexible interpretation of C/C++ preprocessors, reflected in UML analysis.
• Flexible define management with define_hash
  • You can control defines and their values for analysis via the define_hash in the settings file (setting.json). This can be edited from the GUI as well.
• Enhanced settings dialog and configuration management
  • Improved settings dialog with more intuitive editing, saving, and loading.
• Modernized UI/UX
  • Major updates to CSS, HTML, and JS provide a modern look, responsive design, and improved usability.
• WebSocket server and log output improvements
  • Flexible port settings and real-time, improved logging/progress display.

For Ubuntu:

$ sudo apt install ruby ruby-all-dev

For Ubuntu:

$ sudo apt install chromium-browser
$ sudo apt install plantuml
$ sudo apt install clang-format
$ sudo apt install gcc

Add the gem to your application's Gemfile by running:

$ bundle add CppUmlClass

If you are not using bundler, install the gem directly:

$ sudo gem install CppUmlClass

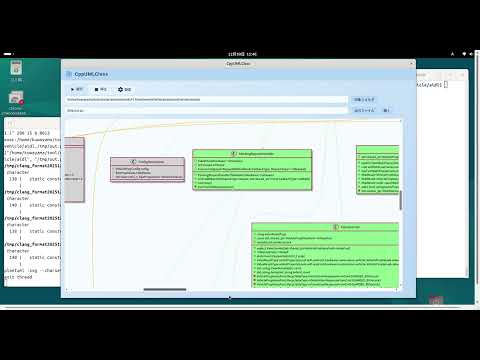

A browser-based GUI will open:

$ start_cpp_uml_class.rb

You can also use the command line interface:

Usage: create_cpp_uml_class.rb [options] cpp_source_directory out_file
    -c config_file

The config_file defaults to CppUmlClass/config/setting.json in your home directory.

Example:

$ create_cpp_uml_class.rb ~/tool/cpp_test /tmp/test.pu

• PlantUML command
• Editor command for PlantUML files
• Default class color 1 and source path for color 1
• Default class color 2 and source path for color 2
• Default class color 3 and source path for color 3
• Exclude path
• define_hash

The settings file is stored at CppUmlClass/config/setting.json in your home directory.

Example for define_hash:

{
  "TEST3": true,
  "DEBUG": 1,
  "TEST_FUNC": true
}

To install this gem locally, run bundle exec rake install.
To release a new version, update the version in version.rb, then run bundle exec rake release (this creates a git tag, pushes commits and tags, and uploads the .gem file to rubygems.org).

Bug reports and pull requests are welcome on GitHub at https://github.com/kuwayama1971/CppUmlClass.

This gem is available as open source under the terms of the MIT License.
