BlackBook 3D Engine

A pure Ruby 3D rendering engine built on OpenGL. Write 3D applications with the simplicity and elegance of Ruby.

• 🎮 Pure Ruby - No C++ required, write everything in Ruby
• 🎨 OpenGL Rendering - Hardware-accelerated 3D graphics
• 📦 3D Model Loading - Import .obj and .raw formats from Blender
• 🎯 Physics Simulation - Collision detection with sphere-to-sphere physics
• 🎬 Camera System - Mouse-controlled camera with multiple view support
• 💡 Lighting - Multiple light sources with material support
• 🖼️ Texture Mapping - Load and apply textures to 3D objects
• 🧮 Vector Math - Complete 3D vector and matrix library
• 🎪 UI System - Built-in UI for creating windows, buttons, and controls

gem install blackbook3d

Or add to your Gemfile:

gem 'blackbook3d', '~> 0.5.0'

Ubuntu/Debian:

sudo apt-get install libglfw3-dev imagemagick

macOS:

brew install glfw imagemagick

Arch Linux:

sudo pacman -S glfw imagemagick

require 'blackbook'

module BlackBook
  class MyApp < Engine
    def initialize
      super(800, 600, 'My 3D App')

      # Create a 3D space
      @space = Space.new(@viewport_x, @viewport_y)

      # Add a camera
      @space.add_camera(
        eye_position: CVector.new(10, 10, 10),
        up: CVector.new(0, 0, 1),
        target_position: CVector.new(0, 0, 0)
      )

      # Add a light
      light = @space.create_light
      light.position.set(5, 5, 10)

      # Load and add a 3D object
      gem_dir = Gem::Specification.find_by_name('blackbook3d').gem_dir
      sphere = File.join(gem_dir, 'data', 'sphere.raw')

      obj = @space.add_object(filename: sphere, name: 'my_sphere')
      obj.material.color.set(1.0, 0.3, 0.3, 1.0)  # Red color
    end

    def render
      super
      @space.init_gl unless @space.gl_active
      @space.render
    end
  end
end

# Run the application
MyApp.new.engine_loop

Save as my_app.rb and run:

ruby my_app.rb

Check out the samples directory for more examples:

• 1_simple.rb - Basic empty scene
• 3_first_object.rb - Loading and displaying 3D objects
• 6_multiple_lights.rb - Working with multiple light sources

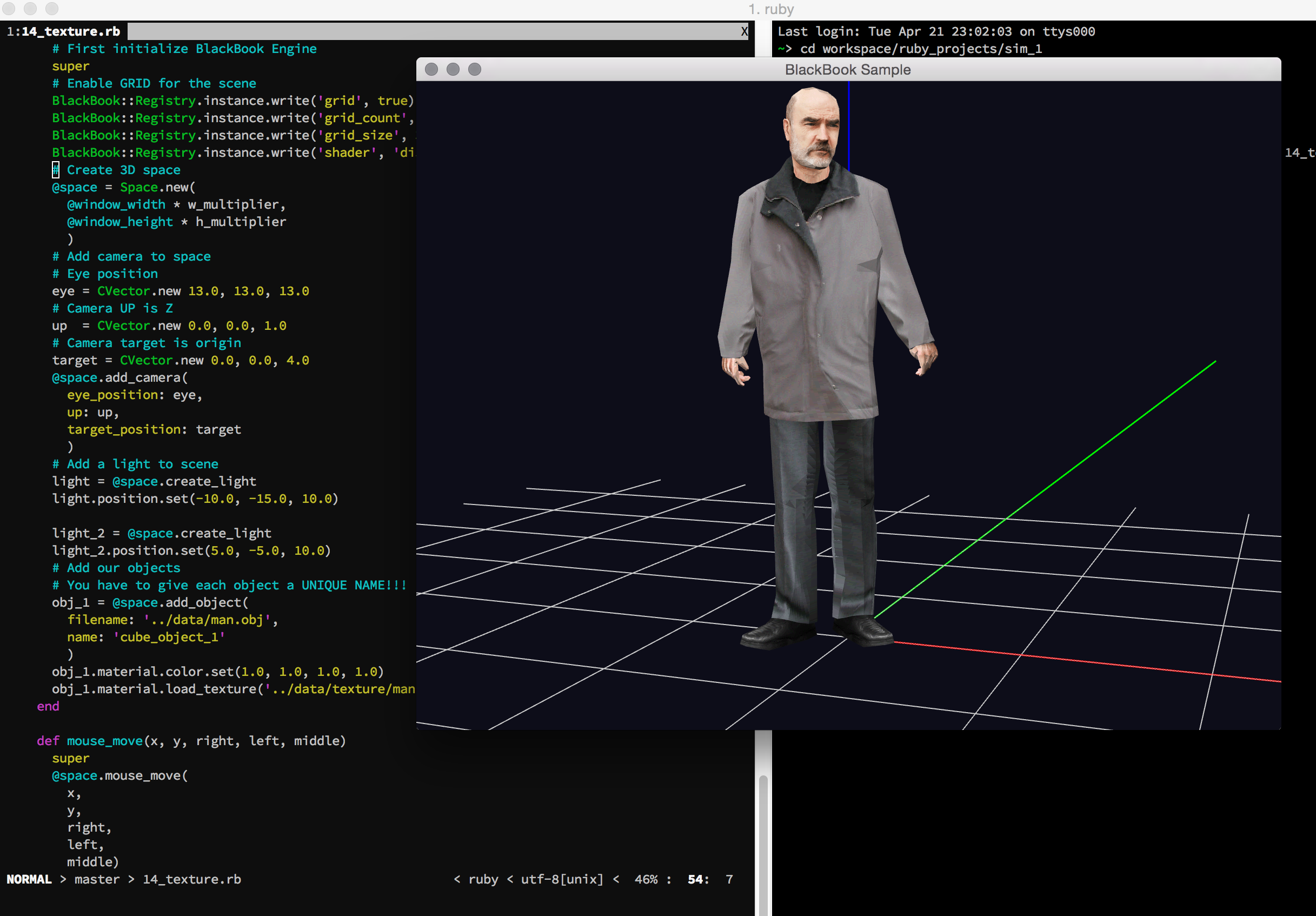

• 14_texture.rb - Applying textures to objects
• 15_bouncing_balls.rb - Physics simulation with collision detection

Run any sample:

cd samples
ruby 15_bouncing_balls.rb

Configure global settings using the Registry:

BlackBook::Registry.setup(
  grid: true,           # Show grid
  grid_count: 100,      # Number of grid lines
  grid_size: 2,         # Grid line spacing
  shader: 'vbo'         # Rendering mode: 'vbo' or 'displaylist'
)

BlackBook supports standard 3D formats:

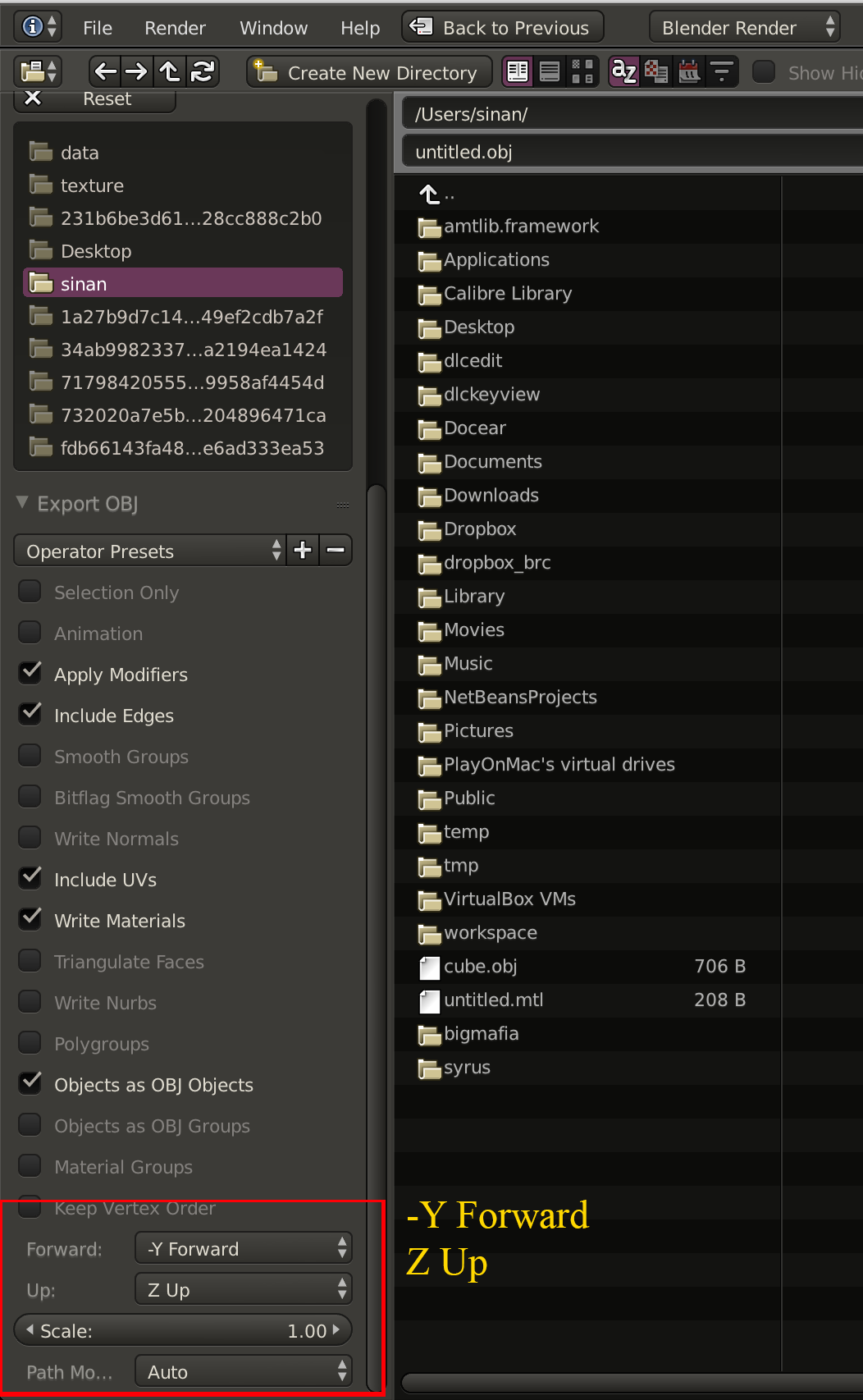

Wavefront OBJ Format:

1. Export from Blender as .obj
2. Set Forward: Y Forward, Up: Z Up
3. Load with space.add_object(filename: 'model.obj')

RAW Format:

1. Export from Blender as RAW triangle format
2. Load with space.add_object(filename: 'model.raw')

Engine
  └── Space (3D Scene)
      ├── Camera (Multiple cameras supported)
      ├── Light (Multiple lights)
      ├── B3DObject (3D Models)
      │   └── Material (Colors, Textures)
      └── UI (Windows, Buttons, Labels)

• Engine - Window and main loop management
• Space - 3D scene container
• Camera - View and projection handling
• B3DObject - 3D meshes with transform matrices
• Material - Colors and texture properties
• CVector - 3D vector math
• Light - Light sources

BlackBook includes basic physics simulation:

# Objects automatically calculate bounding sphere radius
obj = space.add_object(filename: 'sphere.raw')
puts obj.radius  # Calculated from vertices

# Implement collision detection in your update loop
if ball1.position.distance(ball2.position) < ball1.radius + ball2.radius
  # Handle collision
end

See samples/15_bouncing_balls.rb for a complete example.

Built-in mouse camera controls:

• Left Mouse Button + Drag - Rotate camera around target
• Camera movement is automatic in the default implementation
• Override mouse_move in your Engine subclass for custom controls

Generate full API documentation:

gem install yard
yard doc

View the documentation:

yard server

Then open http://localhost:8808

Contributions are welcome!

1. Fork the repository
2. Create your feature branch (git checkout -b feature/amazing)
3. Commit your changes (git commit -am 'Add amazing feature')
4. Push to the branch (git push origin feature/amazing)
5. Open a Pull Request

git clone https://github.com/sinanislekdemir/blackbook.git
cd blackbook
bundle install
ruby samples/1_simple.rb

• Physics engine needs refactoring (contributions welcome!)
• Display lists are used by default (VBOs available but not default)
• Some UI components are work in progress

• ✨ Published to RubyGems.org
• ✨ Modernized for Ruby 3.4+
• ✨ Replaced abandoned glfw3 with glfw 3.3.2
• ✨ Switched from RMagick to MiniMagick
• 🐛 Fixed window resizing and viewport updates
• 🐛 Fixed texture loading with modern ImageMagick
• 🎯 Added automatic radius calculation for collision detection
• 🎯 Improved sphere-to-sphere collision physics
• 📦 Included 103 data files (models, textures, fonts)

See RELEASE_NOTES_v0.5.0.md for complete details.

• Ruby >= 3.0.0
• GLFW 3.x (system library)
• ImageMagick (for texture loading)
• OpenGL support in your graphics driver

GNU General Public License v2.0

See LICENSE for details.

Author: Sinan ISLEKDEMIR (@sinanislekdemir)

Contributors:

• @DarkSpyCyber - Animation system and frames support
• @alx3dev - Code improvements and refactoring
• GitHub Copilot - Modernization assistance (v0.5.0)

Want to contribute? PRs are welcome!

• RubyGems: https://rubygems.org/gems/blackbook3d
• GitHub: https://github.com/sinanislekdemir/blackbook
• Issues: https://github.com/sinanislekdemir/blackbook/issues

Made with ❤️ and Ruby. Perfect for learning 3D graphics or building small 3D visualizations without leaving Ruby.
