 Project Readme

Glimmer DSL for LibUI 0.5.24

Prerequisite-Free Ruby Desktop Development GUI Library

The Quickest Way From Zero To GUI

Gem Version Join the chat at https://gitter.im/AndyObtiva/glimmer

(Fukuoka Ruby Award Competition 2022 Special Award Winner [Award Announcement])

(Presenting "Building Native GUI Apps in Ruby" at RubyConf 2022)

Glimmer DSL for LibUI is a prerequisite-free MRI Ruby desktop development GUI (Graphical User Interface) library. No need to pre-install any prerequisites. Just install the gem and have platform-independent native GUI that just works!

Mac Windows Linux
glimmer-dsl-libui-mac-control-gallery.png glimmer-dsl-libui-windows-control-gallery.png glimmer-dsl-libui-linux-control-gallery.png

LibUI is a thin Ruby wrapper around libui, a relatively new C GUI library that renders native controls on every platform (similar to SWT, but without the heavy weight of the Java Virtual Machine).

The main trade-off in using Glimmer DSL for LibUI as opposed to Glimmer DSL for SWT or Glimmer DSL for Tk is the fact that SWT and Tk are more mature than mid-alpha libui as GUI toolkits. Still, if there is only a need to build a small simple application, Glimmer DSL for LibUI could be a good convenient choice due to having zero prerequisites beyond the dependencies included in the Ruby gem. Also, just like Glimmer DSL for Tk, its apps start instantly and have a small memory footprint. LibUI is a promising new GUI toolkit that might prove quite worthy in the future.

Glimmer DSL for LibUI aims to provide a DSL similar to the Glimmer DSL for SWT to enable more productive desktop development in Ruby with:

  • Declarative DSL syntax that visually maps to the GUI control hierarchy
  • Convention over configuration via smart defaults and automation of low-level details
  • Requiring the least amount of syntax possible to build GUI
  • Custom Control support
  • Bidirectional/Unidirectional Data-Binding to declaratively wire and automatically synchronize GUI Views with Models
  • [Far Future Plan] Scaffolding for new custom controls, apps, and gems
  • [Far Future Plan] Native-Executable packaging on Mac, Windows, and Linux.

Hello, World!

require 'glimmer-dsl-libui'

include Glimmer

window('hello world').show
Mac Windows Linux
glimmer-dsl-libui-mac-basic-window.png glimmer-dsl-libui-windows-basic-window.png glimmer-dsl-libui-linux-basic-window.png

Basic Table Progress Bar

require 'glimmer-dsl-libui'

include Glimmer

data = [
  ['task 1', 0],
  ['task 2', 15],
  ['task 3', 100],
  ['task 4', 75],
  ['task 5', -1],
]

window('Task Progress', 300, 200) {
  vertical_box {
    table {
      text_column('Task')
      progress_bar_column('Progress')

      cell_rows data # implicit data-binding
    }

    button('Mark All As Done') {
      stretchy false

      on_clicked do
        data.each_with_index do |row_data, row|
          data[row][1] = 100 # automatically updates table due to implicit data-binding
        end
      end
    }
  }
}.show
Mac Windows Linux
glimmer-dsl-libui-mac-basic-table-progress-bar.png glimmer-dsl-libui-windows-basic-table-progress-bar.png glimmer-dsl-libui-linux-basic-table-progress-bar.png

Form Table

require 'glimmer-dsl-libui'

class FormTable
  Contact = Struct.new(:name, :email, :phone, :city, :state)

  include Glimmer

  attr_accessor :contacts, :name, :email, :phone, :city, :state, :filter_value

  def initialize
    @contacts = [
      Contact.new('Lisa Sky', 'lisa@sky.com', '720-523-4329', 'Denver', 'CO'),
      Contact.new('Jordan Biggins', 'jordan@biggins.com', '617-528-5399', 'Boston', 'MA'),
      Contact.new('Mary Glass', 'mary@glass.com', '847-589-8788', 'Elk Grove Village', 'IL'),
      Contact.new('Darren McGrath', 'darren@mcgrath.com', '206-539-9283', 'Seattle', 'WA'),
      Contact.new('Melody Hanheimer', 'melody@hanheimer.com', '213-493-8274', 'Los Angeles', 'CA'),
    ]
  end

  def launch
    window('Contacts', 600, 600) {
      margined true

      vertical_box {
        form {
          stretchy false

          entry {
            label 'Name'
            text <=> [self, :name] # bidirectional data-binding between entry text and self.name
          }

          entry {
            label 'Email'
            text <=> [self, :email]
          }

          entry {
            label 'Phone'
            text <=> [self, :phone]
          }

          entry {
            label 'City'
            text <=> [self, :city]
          }

          entry {
            label 'State'
            text <=> [self, :state]
          }
        }

        button('Save Contact') {
          stretchy false

          on_clicked do
            new_row = [name, email, phone, city, state]
            if new_row.map(&:to_s).include?('')
              msg_box_error('Validation Error!', 'All fields are required! Please make sure to enter a value for all fields.')
            else
              @contacts << Contact.new(*new_row) # automatically inserts a row into the table due to explicit data-binding
              @unfiltered_contacts = @contacts.dup
              self.name = '' # automatically clears name entry through explicit data-binding
              self.email = ''
              self.phone = ''
              self.city = ''
              self.state = ''
            end
          end
        }

        search_entry {
          stretchy false
          # bidirectional data-binding of text to self.filter_value with after_write option
          text <=> [self, :filter_value,
            after_write: ->(filter_value) { # execute after write to self.filter_value
              @unfiltered_contacts ||= @contacts.dup
              # Unfilter first to remove any previous filters
              self.contacts = @unfiltered_contacts.dup # affects table indirectly through explicit data-binding
              # Now, apply filter if entered
              unless filter_value.empty?
                self.contacts = @contacts.filter do |contact| # affects table indirectly through explicit data-binding
                  contact.members.any? do |attribute|
                    contact[attribute].to_s.downcase.include?(filter_value.downcase)
                  end
                end
              end
            }
          ]
        }

        table {
          text_column('Name')
          text_column('Email')
          text_column('Phone')
          text_column('City')
          text_column('State')

          editable true
          cell_rows <=> [self, :contacts] # explicit data-binding to self.contacts Modal Array, auto-inferring model attribute names from underscored table column names by convention

          on_changed do |row, type, row_data|
            puts "Row #{row} #{type}: #{row_data}"
            $stdout.flush # for Windows
          end

          on_edited do |row, row_data| # only fires on direct table editing
            puts "Row #{row} edited: #{row_data}"
            $stdout.flush # for Windows
          end
        }
      }
    }.show
  end
end

FormTable.new.launch
Mac Windows Linux
glimmer-dsl-libui-mac-form-table.png glimmer-dsl-libui-windows-form-table.png glimmer-dsl-libui-linux-form-table.png

Area Gallery

require 'glimmer-dsl-libui'

include Glimmer

window('Area Gallery', 400, 400) {
  area {
    path { # declarative stable path (explicit path syntax for multiple shapes sharing attributes)
      square(0, 0, 100)
      square(100, 100, 400)

      fill r: 102, g: 102, b: 204
    }

    path { # declarative stable path (explicit path syntax for multiple shapes sharing attributes)
      rectangle(0, 100, 100, 400)
      rectangle(100, 0, 400, 100)

      # linear gradient (has x0, y0, x1, y1, and stops)
      fill x0: 10, y0: 10, x1: 350, y1: 350, stops: [{pos: 0.25, r: 204, g: 102, b: 204}, {pos: 0.75, r: 102, g: 102, b: 204}]
    }

    polygon(100, 100, 100, 400, 400, 100, 400, 400) { # declarative stable path (implicit path syntax for a single shape nested directly under area)
      fill r: 202, g: 102, b: 104, a: 0.5
      stroke r: 0, g: 0, b: 0
    }

    polybezier(0, 0,
               200, 100, 100, 200, 400, 100,
               300, 100, 100, 300, 100, 400,
               100, 300, 300, 100, 400, 400) { # declarative stable path (implicit path syntax for a single shape nested directly under area)
      fill r: 202, g: 102, b: 204, a: 0.5
      stroke r: 0, g: 0, b: 0, thickness: 2, dashes: [50, 10, 10, 10], dash_phase: -50.0
    }

    polyline(100, 100, 400, 100, 100, 400, 400, 400, 0, 0) { # declarative stable path (implicit path syntax for a single shape nested directly under area)
      stroke r: 0, g: 0, b: 0, thickness: 2
    }

    arc(404, 216, 190, 90, 90, false) { # declarative stable path (implicit path syntax for a single shape nested directly under area)
      # radial gradient (has an outer_radius in addition to x0, y0, x1, y1, and stops)
      fill outer_radius: 90, x0: 0, y0: 0, x1: 500, y1: 500, stops: [{pos: 0.25, r: 102, g: 102, b: 204, a: 0.5}, {pos: 0.75, r: 204, g: 102, b: 204}]
      stroke r: 0, g: 0, b: 0, thickness: 2, dashes: [50, 10, 10, 10], dash_phase: -50.0
    }

    circle(200, 200, 90) { # declarative stable path (implicit path syntax for a single shape nested directly under area)
      fill r: 202, g: 102, b: 204, a: 0.5
      stroke r: 0, g: 0, b: 0, thickness: 2
    }

    text(161, 40, 100) { # declarative stable text
      string('Area Gallery') {
        font family: 'Arial', size: (OS.mac? ? 14 : 11)
        color :black
      }
    }

    on_mouse_event do |area_mouse_event|
      p area_mouse_event
    end

    on_mouse_moved do |area_mouse_event|
      puts 'moved'
    end

    on_mouse_down do |area_mouse_event|
      puts 'mouse down'
    end

    on_mouse_up do |area_mouse_event|
      puts 'mouse up'
    end

    on_mouse_drag_started do |area_mouse_event|
      puts 'drag started'
    end

    on_mouse_dragged do |area_mouse_event|
      puts 'dragged'
    end

    on_mouse_dropped do |area_mouse_event|
      puts 'dropped'
    end

    on_mouse_entered do
      puts 'entered'
    end

    on_mouse_exited do
      puts 'exited'
    end

    on_key_event do |area_key_event|
      p area_key_event
    end

    on_key_up do |area_key_event|
      puts 'key up'
    end

    on_key_down do |area_key_event|
      puts 'key down'
    end
  }
}.show
Mac Windows Linux
glimmer-dsl-libui-mac-area-gallery.png glimmer-dsl-libui-windows-area-gallery.png glimmer-dsl-libui-linux-area-gallery.png

Check Out Many More Examples Over Here!




NOTE: Glimmer DSL for LibUI is 100% feature-complete with regards to covering the C libui library API and in beta mode (though the C libui is still mid-alpha, which is why Glimmer DSL for LibUI cannot be declared v1.0.0 yet). Please help make better by contributing, adopting for small or low risk projects, and providing feedback. The more feedback and issues you report the better.

Glimmer DSL Comparison Table:

DSL Platforms Native? Vector Graphics? Pros Cons Prereqs
Glimmer DSL for SWT (JRuby Desktop Development GUI Framework) Mac / Windows / Linux Yes Yes (Canvas Shape DSL) Very Mature / Scaffolding / Native Executable Packaging / Custom Widgets Slow JRuby Startup Time / Heavy Memory Footprint Java / JRuby
Glimmer DSL for Opal (Pure Ruby Web GUI and Auto-Webifier of Desktop Apps) All Web Browsers No Yes (Canvas Shape DSL) Simpler than All JavaScript Technologies / Auto-Webify Desktop Apps Setup Process / Only Rails 5 Support for Now Rails
Glimmer DSL for LibUI (Prerequisite-Free Ruby Desktop Development GUI Library) Mac / Windows / Linux Yes Yes (Area API) Fast Startup Time / Light Memory Footprint LibUI is an Incomplete Mid-Alpha Only None Other Than MRI Ruby
Glimmer DSL for Tk (Ruby Tk Desktop Development GUI Library) Mac / Windows / Linux Some Native-Themed Widgets (Not Truly Native) Yes (Canvas) Fast Startup Time / Light Memory Footprint Complicated Setup / Widgets Do Not Look Truly Native, Espcially on Linux ActiveTcl / MRI Ruby
Glimmer DSL for GTK (Ruby-GNOME Desktop Development GUI Library) Mac / Windows / Linux Only on Linux Yes (Cairo) Complete Access to GNOME Features on Linux (Forte) Not Native on Mac and Windows None Other Than MRI Ruby on Linux / Brew Packages on Mac / MSYS & MING Toolchains on Windows / MRI Ruby
Glimmer DSL for FX (FOX Toolkit Ruby Desktop Development GUI Library) Mac (requires XQuartz) / Windows / Linux No Yes (Canvas) No Prerequisites on Windows (Forte Since Binaries Are Included Out of The Box) Widgets Do Not Look Native / Mac Usage Obtrusively Starts XQuartz None Other Than MRI Ruby on Windows / XQuarts on Mac / MRI Ruby
Glimmer DSL for JFX (JRuby JavaFX Desktop Development GUI Library) Mac / Windows / Linux No Yes (javafx.scene.shape and javafx.scene.canvas) Rich in Custom Widgets Slow JRuby Startup Time / Heavy Memory Footprint / Widgets Do Not Look Native Java / JRuby / JavaFX SDK
Glimmer DSL for Swing (JRuby Swing Desktop Development GUI Library) Mac / Windows / Linux No Yes (Java2D) Very Mature Slow JRuby Startup Time / Heavy Memory Footprint / Widgets Do Not Look Native Java / JRuby
Glimmer DSL for XML (& HTML) All Web Browsers No Yes (SVG) Programmable / Lighter-weight Than Actual XML XML Elements Are Sometimes Not Well-Named (Many Types of Input) None
Glimmer DSL for CSS All Web Browsers No Yes Programmable CSS Is Over-Engineered / Too Many Features To Learn None

Table of Contents

  • Glimmer DSL for LibUI
    • Glimmer GUI DSL Concepts
    • Usage
    • Girb (Glimmer IRB)
    • API
      • Supported Keywords
      • Common Control Properties
      • Common Control Operations
      • LibUI Operations
      • Extra Dialogs
      • Extra Operations
      • Table API
      • Area API
        • Scrolling Area
        • Area Path Shapes
        • Area Text
        • Area Image
        • Colors
        • Area Draw Params
        • Area Listeners
        • Area Methods/Attributes
        • Area Transform Matrix
        • Area Animation
      • Smart Defaults and Conventions
      • Custom Keywords
      • Observer Pattern
      • Data-Binding
        • Bidirectional (Two-Way) Data-Binding
          • Table Data-Binding
        • Unidirectional (One-Way) Data-Binding
        • Data-Binding API
        • Data-Binding Gotchas
      • API Gotchas
      • Original API
    • Packaging
    • Glimmer Style Guide
    • Examples
      • Basic Examples
      • Advanced Examples
    • Applications
      • Manga2PDF
      • Befunge98 GUI
      • i3off Gtk Ruby
      • Chess
      • RubyCrumbler
      • Rubio-Radio
      • PMV Calc
    • Process
    • Resources
    • Help
      • Issues
      • Chat
    • Planned Features and Feature Suggestions
    • Change Log
    • Contributing
    • Contributors
    • License

Glimmer GUI DSL Concepts

The Glimmer GUI DSL provides object-oriented declarative hierarchical syntax for LibUI that:

  • Supports smart defaults (e.g. automatic on_closing listener that quits window)
  • Automates wiring of controls (e.g. button is automatically set as child of window)
  • Hides lower-level details (e.g. LibUI.main loop is started automatically when triggering show on window)
  • Nests controls according to their visual hierarchy
  • Requires the minimum amount of syntax needed to describe an app's GUI

The Glimmer GUI DSL follows these simple concepts in mapping from LibUI syntax:

Keyword(args): LibUI controls may be declared by lower-case underscored name (aka keyword from list of supported keywords) (e.g. window or button). Behind the scenes, they are represented by keyword methods that map to corresponding LibUI.new_keyword methods receiving args (e.g. window('hello world', 300, 200, true)).

Content Block (Properties/Listeners/Controls): Any keyword may be optionally followed by a Ruby curly-brace multi-line content block containing properties (attributes), listeners, and/or nested controls.

Example:

window {
  title 'hello world' # property

  on_closing do # listener (always has a do; end block to signify logic)
    puts 'Bye'
  end

  button('greet') { # nested control
    on_clicked do
      puts 'hello world'
    end
  }
}

Content block optionally receives one arg representing the controll

Example:

button('greet') { |b|
  on_clicked do
    puts b.text
  end
}

Property: Control properties may be declared inside keyword blocks with lower-case underscored name followed by property value args (e.g. title "hello world" inside group). Behind the scenes, properties correspond to LibUI.control_set_property methods.

Listener: Control listeners may be declared inside keyword blocks with listener lower-case underscored name beginning with on_ and receiving required block handler (always followed by a do; end style block to signify logic).

Example:

button('click') {
  on_clicked do
    puts 'clicked'
  end
}

Optionally, the listener block can receive an arg representing the control.

button('click') {
  on_clicked do |btn|
    puts btn.text
  end
}

Behind the scenes, listeners correspond to LibUI.control_on_event methods.

Method: Controls have methods that invoke certain operations on them. For example, window has a #show method that shows the window GUI. More methods are mentioned under API

Example of an app written in LibUI's procedural imperative syntax:

require 'libui'

UI = LibUI

UI.init

main_window = UI.new_window('hello world', 300, 200, 1)

button = UI.new_button('Button')

UI.button_on_clicked(button) do
  UI.msg_box(main_window, 'Information', 'You clicked the button')
end

UI.window_on_closing(main_window) do
  puts 'Bye Bye'
  UI.control_destroy(main_window)
  UI.quit
  0
end

UI.window_set_child(main_window, button)
UI.control_show(main_window)

UI.main
UI.quit

Example of the same app written in Glimmer object-oriented declarative hierarchical syntax:

require 'glimmer-dsl-libui'

include Glimmer

window('hello world', 300, 200) {
  button('Button') {
    on_clicked do
      msg_box('Information', 'You clicked the button')
    end
  }

  on_closing do
    puts 'Bye Bye'
  end
}.show

Usage

Install glimmer-dsl-libui gem directly into a maintained Ruby version:

gem install glimmer-dsl-libui

Or install via Bundler Gemfile:

gem 'glimmer-dsl-libui', '~> 0.5.24'

Test that installation worked by running the Meta-Example:

ruby -r glimmer-dsl-libui -e "require 'examples/meta_example'"
Mac Windows Linux
glimmer-dsl-libui-mac-meta-example.png glimmer-dsl-libui-windows-meta-example.png glimmer-dsl-libui-linux-meta-example.png

Now to use glimmer-dsl-libui, add require 'glimmer-dsl-libui' at the top.

Afterwards, include Glimmer into the top-level main object for testing or into an actual class for serious usage.

Alternatively, include Glimmer::LibUI::Application to conveniently declare the GUI body and run via the ::launch method (Glimmer::LibUI::Application is an alias for Glimmer::LibUI::CustomWindow since that is what it represents).

Example including Glimmer::LibUI::Application (you may copy/paste in girb):

require 'glimmer-dsl-libui'

class SomeGlimmerApp
  include Glimmer::LibUI::Application

  body {
    window('hello world', 300, 200) {
      button('Button') {
        on_clicked do
          puts 'Button Clicked'
        end
      }
    }
  }
end

SomeGlimmerApp.launch

Example including Glimmer and manually implementing the #launch method (you may copy/paste in girb):

require 'glimmer-dsl-libui'

class SomeGlimmerApp
  include Glimmer

  def launch
    window('hello world', 300, 200) {
      button('Button') {
        on_clicked do
          puts 'Button Clicked'
        end
      }
    }.show
  end
end

SomeGlimmerApp.new.launch

Example including Glimmer at the top-level scope just for some prototyping/demoing/testing (you may copy/paste in girb):

require 'glimmer-dsl-libui'

include Glimmer

window('hello world', 300, 200) {
  button('Button') {
    on_clicked do
      puts 'Button Clicked'
    end
  }
}.show

If you are new to Glimmer DSL for LibUI, check out Girb and Examples to quickly learn through copy/paste. You may refer to the API later on once you have gotten your feet wet with Glimmer DSL for LibUI and need more detailed reference information.

Girb (Glimmer IRB)

You can run the girb command (bin/girb if you cloned the project locally) to do some quick and dirty experimentation and learning:

girb

This gives you irb with the glimmer-dsl-libui gem loaded and the Glimmer module mixed into the main object for easy experimentation with GUI.


For a more advanced code editing tool, check out the Meta-Example (The Example of Examples).

Gotcha: On the Mac, when you close a window opened in girb, it remains open until you enter exit or open another GUI window.

API

Any control returned by a Glimmer GUI DSL keyword declaration can be introspected for its properties and updated via object-oriented attributes (standard Ruby attr/attr= or set_attr).

Example (you may copy/paste in girb):

w = window('hello world')
puts w.title # => hello world
w.title = 'howdy'
puts w.title # => howdy
w.set_title 'aloha'
puts w.title # => aloha

Controls are wrapped as Ruby proxy objects, having a #libui method to obtain the wrapped LibUI Fiddle pointer object. Ruby proxy objects rely on composition (via Proxy Design Pattern) instead of inheritance to shield consumers from having to deal with lower-level details unless absolutely needed. That said, you can invoke any LibUI operation on the Glimmer proxy object directly and it gets proxied automatically to the wrapped Fiddle pointer object (e.g. window_proxy.title gets proxied to LibUI.window_title(window_proxy.libui).to_s automatically), so you rarely have to refer to the wrapped #libui Fiddle pointer object directly.

Example (you may copy/paste in girb):

w = window('hello world') # => #<Glimmer::LibUI::WindowProxy:0x00007fde4ea39fb0
w.libui # => #<Fiddle::Pointer:0x00007fde53997980 ptr=0x00007fde51352a60 size=0 free=0x0000000000000000>
w.title == LibUI.window_title(w.libui).to_s # => true

Supported Keywords

These are all the supported keywords. Note that some keywords do not represent controls. For example, some keywords produce objects that are used as the property values of controls (e.g. image can be used as a control under area or alternatively build objects to use in cell_rows for a table with an image_column)

Keyword(Args) Properties Listeners
about_menu_item None on_clicked
area auto_draw_enabled on_draw(area_draw_params), on_mouse_event(area_mouse_event), on_mouse_down(area_mouse_event), on_mouse_up(area_mouse_event), on_mouse_drag_started(area_mouse_event), on_mouse_dragged(area_mouse_event), on_mouse_dropped(area_mouse_event), on_mouse_entered, on_mouse_exited, on_key_event(area_key_event), on_key_down(area_key_event), on_key_up(area_key_event)
arc(x_center as Numeric, y_center as Numeric, radius as Numeric, start_angle as Numeric, sweep as Numeric, is_negative as Boolean) x_center (Numeric), y_center (Numeric), radius (Numeric), start_angle (Numeric), sweep (Numeric), is_negative (Boolean) None
background_color_column None None
bezier(x = nil as Numeric, y = nil as Numeric, c1_x as Numeric, c1_y as Numeric, c2_x as Numeric, c2_y as Numeric, end_x as Numeric, end_y as Numeric) x (Numeric), y (Numeric), c1_x (Numeric), c1_y (Numeric), c2_x (Numeric), c2_y (Numeric), end_x (Numeric), end_y (Numeric) None
button(text as String) text (String) on_clicked
button_column(name as String) enabled (Boolean) None
checkbox(text as String) checked (Boolean), text (String) on_toggled
checkbox_column(name as String) editable (Boolean) None
checkbox_text_column(name as String) editable (Boolean), editable_checkbox (Boolean), editable_text (Boolean) None
checkbox_text_color_column(name as String) editable (Boolean), editable_checkbox (Boolean), editable_text (Boolean) None
check_menu_item(text as String) checked (Boolean) on_clicked
code_area language (String) (default: 'ruby'), theme (String) (default: 'glimmer'), code (String) None
combobox items (Array of String), selected (Integer), selected_item (String) on_selected
color_button color (Array of red as Float, green as Float, blue as Float, alpha as Float), red as Float, green as Float, blue as Float, alpha as Float on_changed
date_picker time (Hash of keys: sec as Integer, min as Integer, hour as Integer, mday as Integer, mon as Integer, year as Integer, wday as Integer, yday as Integer, dst as Boolean) on_changed
date_time_picker time (Hash of keys: sec as Integer, min as Integer, hour as Integer, mday as Integer, mon as Integer, year as Integer, wday as Integer, yday as Integer, dst as Boolean) on_changed
editable_combobox items (Array of String), text (String) on_changed
entry read_only (Boolean), text (String) on_changed
figure(x=nil as Numeric, y=nil as Numeric) x (Numeric), y (Numeric), closed (Boolean) None
font_button font [read-only] (Hash of keys: :family, :size, :weight, :italic, :stretch), family as String, size as Float, weight as Integer, italic as Integer, stretch as Integer on_changed
form padded (Boolean) None
grid padded (Boolean) None
group(text as String) margined (Boolean), title (String) None
horizontal_box padded (Boolean) None
horizontal_separator None None
image(file as String = nil, width as Numeric = nil, height as Numeric = nil) file (String path or URL), width, height None
image_part(pixels as String [encoded image rgba byte array], width as Numeric, height as Numeric, byte_stride as Numeric [usually width*4]) None None
image_column(name as String) None None
image_text_column(name as String) None None
image_text_color_column(name as String) None None
label(text as String) text (String) None
line(x as Numeric, y as Numeric, end_x = nil as Numeric, end_y = nil as Numeric) x (Numeric), y (Numeric), end_x (Numeric), end_y (Numeric) None
matrix(m11 = nil as Numeric, m12 = nil as Numeric, m21 = nil as Numeric, m22 = nil as Numeric, m31 = nil as Numeric, m32 = nil as Numeric) m11 (Numeric), m12 (Numeric), m21 (Numeric), m22 (Numeric), m31 (Numeric), m32 (Numeric) None
menu(text as String) None None
menu_item(text as String) None on_clicked
message_box (alias for msg_box; see for arguments) None None
message_box_error (alias for msg_box_error; see for arguments) None None
multiline_entry read_only (Boolean), text (String) on_changed
msg_box(window = main_window as Glimmer::LibUI::WindowProxy, title as String, description as String) None None
msg_box_error(window = main_window as Glimmer::LibUI::WindowProxy, title as String, description as String) None None
non_wrapping_multiline_entry read_only (Boolean), text (String) on_changed
observe(model, property = nil) None None
password_entry read_only (Boolean), text (String) on_changed
path(draw_fill_mode = :winding) fill (Hash of :r as 0-255, :g as 0-255, :b as 0-255, :a as 0.0-1.0, hex, or X11 color), stroke (Hash of :r as 0-255, :g as 0-255, :b as 0-255, :a as 0.0-1.0, hex, or X11 color), :cap as (:round, :square, :flat), :join as (:miter, :round, :bevel), :thickness as Numeric, :miter_limit as Numeric, :dashes as Array of Numeric ) None
polygon(point_array as Array of Arrays of Numeric or Array of Numeric) point_array (Array of Arrays of Numeric or Array of Numeric) None
polyline(point_array as Array of Arrays of Numeric or Array of Numeric) point_array (Array of Arrays of Numeric or Array of Numeric) None
polybezier(point_array as Array of Arrays of Numeric or Array of Numeric) point_array (Array of Arrays of Numeric or Array of Numeric) None
preferences_menu_item None on_clicked
progress_bar value (Numeric) None
progress_bar_column(name as String) None None
quit_menu_item None on_clicked
radio_buttons selected (Integer) on_selected
rectangle(x as Numeric, y as Numeric, width as Numeric, height as Numeric) x (Numeric), y (Numeric), width (Numeric), height (Numeric) None
refined_table model_array (Array), table_columns (Hash), table_editable (Boolean), per_page (Integer), page (Integer), visible_page_count (Boolean), filter_query (String), filter (Lambda) (EARLY ALPHA UNSTABLE API / CHECK SOURCE CODE FOR DETAILS)
scrolling_area(width = main_window.width, height = main_window.height) auto_draw_enabled (Boolean), size (Array of width (Numeric) and height (Numeric)), width (Numeric), height (Numeric) on_draw(area_draw_params), on_mouse_event(area_mouse_event), on_mouse_down(area_mouse_event), on_mouse_up(area_mouse_event), on_mouse_drag_started(area_mouse_event), on_mouse_dragged(area_mouse_event), on_mouse_dropped(area_mouse_event), on_mouse_entered, on_mouse_exited, on_key_event(area_key_event), on_key_down(area_key_event), on_key_up(area_key_event)
search_entry read_only (Boolean), text (String) on_changed
separator_menu_item None None
slider(min as Numeric, max as Numeric) value (Numeric) on_changed
spinbox(min as Numeric, max as Numeric) value (Numeric) on_changed
square(x as Numeric, y as Numeric, length as Numeric) x (Numeric), y (Numeric), length (Numeric) None
string(string = '') font, color (Hash of :r as 0-255, :g as 0-255, :b as 0-255, :a as 0.0-1.0, hex, or X11 color), background (Hash of :r as 0-255, :g as 0-255, :b as 0-255, :a as 0.0-1.0, hex, or X11 color), underline, underline_color (Hash of :r as 0-255, :g as 0-255, :b as 0-255, :a as 0.0-1.0, hex, or X11 color), open_type_features, string (String) None
tab margined (Boolean), num_pages (Integer) None
tab_item(name as String) index [read-only] (Integer), margined (Boolean), name [read-only] (String) None
table cell_rows (Array (rows) of Arrays (row columns) of cell values (e.g. String values for text_column cells or Array of image/String for image_text_column)), editable as Boolean `on_changed {
text(x = 0 as Numeric, y = 0 as Numeric, width = area_width as Numeric) align, default_font None
text_column(name as String) editable (Boolean) None
text_color_column(name as String) editable (Boolean) None
time_picker time (Hash of keys: sec as Integer, min as Integer, hour as Integer) on_changed
vertical_box padded (Boolean) None
vertical_separator None None
window(title as String, width as Integer, height as Integer, has_menubar as Boolean) borderless (Boolean), content_size (width Numeric, height Numeric), width (Numeric), height (Numeric), fullscreen (Boolean), margined (Boolean), title (String), resizable (Boolean) on_closing, on_content_size_changed, on_destroy

Common Control Properties

  • enabled (Boolean)
  • libui (Fiddle::Pointer): returns wrapped LibUI object
  • parent_proxy (Glimmer::LibUI::ControlProxy or subclass)
  • parent (Fiddle::Pointer)
  • toplevel [read-only] (Boolean)
  • visible (Boolean)
  • stretchy [dsl-only] (Boolean) [default=true]: available in Glimmer GUI DSL when nested under horizontal_box, vertical_box, or form
  • left [dsl-only] (Integer) [default=0]: available in Glimmer GUI DSL when nested under grid
  • top [dsl-only] (Integer) [default=0]: available in Glimmer GUI DSL when nested under grid
  • xspan [dsl-only] (Integer) [default=1]: available in Glimmer GUI DSL when nested under grid
  • yspan [dsl-only] (Integer) [default=1]: available in Glimmer GUI DSL when nested under grid
  • hexpand [dsl-only] (Boolean) [default=false]: available in Glimmer GUI DSL when nested under grid
  • halign [dsl-only] (:fill, :start, :center, or :end) [default=:fill]: available in Glimmer GUI DSL when nested under grid
  • vexpand [dsl-only] (Boolean) [default=false]: available in Glimmer GUI DSL when nested under grid
  • valign [dsl-only] (:fill, :start, :center, or :end) [default=:fill]: available in Glimmer GUI DSL when nested under grid

Common Control Operations

  • destroy
  • disable
  • enable
  • hide
  • show

LibUI Operations

All operations that could normally be called on LibUI can also be called on Glimmer::LibUI, but some have enhancements as detailed below.

  • Glimmer::LibUI::queue_main(&block): queues an operation to be run on the main event loop at the earliest opportunity possible
  • Glimmer::LibUI::timer(time_in_seconds=0.1, repeat: true, &block): calls block after time_in_seconds has elapsed, repeating indefinitely unless repeat is false or an Integer for finite number of repeats. Block can return false or true to override next repetition.

There are additional useful Glimmer::LibUI operations that are not found in LibUI, which mostly help if you would like to do advanced lower level LibUI programming:

  • Glimmer::LibUI::integer_to_boolean(int, allow_nil: true)
  • Glimmer::LibUI::boolean_to_integer(int, allow_nil: true)
  • Glimmer::LibUI::degrees_to_radians(degrees)
  • Glimmer::LibUI::interpret_color(value): interprets a color in any form like String, Symbol, or hex into an rgb Hash (including 0x1f3b5d, '0x1f3b5d', '#1f3b5d', and 3-char hex-shorthand variations)
  • Glimmer::LibUI::hex_to_rgb(value): converts a hex color to an rgb Hash (including 0x1f3b5d, '0x1f3b5d', '#1f3b5d', and 3-char hex-shorthand variations)
  • Glimmer::LibUI::enum_names: provides all possible enum names to use with Glimmer::LibUI::enum_symbols(enum_name)
  • Glimmer::LibUI::enum_symbols(enum_name): returns all possible values for an enum. enum_name can be:
    • :draw_brush_type: [:solid, :linear_gradient, :radial_gradient, :image]
    • :draw_line_cap: [:flat, :round, :square]
    • :draw_line_join: [:miter, :round, :bevel]
    • :draw_fill_mode: [:winding, :alternate]
    • :attribute_type: attributes for attributed strings: [:family, :size, weight, :italic, :stretch, :color, :background, :underline, :underline_color, :features]
    • :text_weight: [:minimum, :thin, :ultra_light, :light, :book, :normal, :medium, :semi_bold, :bold, :ultra_bold, :heavy, :ultra_heavy, :maximum]
    • :text_italic: [:normal, :oblique, :italic]
    • :text_stretch: [:ultra_condensed, :extra_condensed, :condensed, :semi_condensed, :normal, :semi_expanded, :expanded, :extra_expanded, :ultra_expanded]
    • :underline: [:none, :single, :double, :suggestion, :color_custom, :color_spelling, :color_grammar, :color_auxiliary]
    • :underline_color: [:custom, :spelling, :grammar, :auxiliary]
    • :draw_text_align: [:left, :center, :right]
    • :modifier: [:ctrl, :alt, :shift, :super]
    • :ext_key: [:escape, :insert, :delete, :home, :end, :page_up, :page_down, :up, :down, :left, :right, :f1, :f2, :f3, :f4, :f5, :f6, :f7, :f8, :f9, :f10, :f11, :f12, :n0, :n1, :n2, :n3, :n4, :n5, :n6, :n7, :n8, :n9, :n_dot, :n_enter, :n_add, :n_subtract, :n_multiply, :n_divide]
    • :at: for inserting grid controls: [:leading, :top, :trailing, :bottom]
    • :align: [:fill, :start, :center, :end]
    • :table_value_type: [:string, :image, :int, :color]
    • :table_model_column: [:never_editable, :always_editable]
  • Glimmer::LibUI::enum_symbol_to_value(enum_name, enum_symbol, default_symbol: nil, default_index: 0)
  • Glimmer::LibUI::enum_value_to_symbol(enum_name, enum_value)
  • Glimmer::LibUI::x11_colors: returns all X11 colors: [:alice_blue, :antique_white, :aqua, :aquamarine, :azure, :beige, :bisque, :rebecca_purple, :becca_purple, :blanched_almond, :blue, :blue_violet, :brown, :burly_wood, :burlywood, :cadet_blue, :carnation, :cayenne, :chartreuse, :chocolate, :coral, :cornflower_blue, :cornsilk, :crimson, :cyan, :dark_blue, :dark_cyan, :dark_golden_rod, :dark_goldenrod, :dark_gray, :dark_grey, :dark_green, :dark_khaki, :dark_magenta, :dark_olive_green, :darkolive_green, :dark_orange, :dark_orchid, :dark_red, :dark_salmon, :darksalmon, :dark_sea_green, :dark_slate_blue, :dark_slate_gray, :dark_slate_grey, :dark_turquoise, :dark_violet, :darkorange, :deep_pink, :deep_sky_blue, :dim_gray, :dim_grey, :dodger_blue, :feldspar, :fire_brick, :firebrick, :floral_white, :forest_green, :fuchsia, :gainsboro, :ghost_white, :gold, :golden_rod, :goldenrod, :gray, :grey, :gray10, :grey10, :gray20, :grey20, :gray30, :grey30, :gray40, :grey40, :gray50, :grey50, :gray60, :grey60, :gray70, :grey70, :gray80, :grey80, :gray90, :grey90, :green, :green_yellow, :honey_dew, :honeydew, :hot_pink, :indian_red, :indigo, :ivory, :khaki, :lavender, :lavender_blush, :lawn_green, :lemon_chiffon, :light_blue, :light_coral, :light_cyan, :light_golden_rod_yellow, :light_goldenrod_yellow, :light_gray, :light_grey, :light_green, :light_pink, :light_salmon, :lightsalmon, :light_sea_green, :light_sky_blue, :light_slate_blue, :light_slate_gray, :light_slate_grey, :light_steel_blue, :lightsteel_blue, :light_yellow, :lime, :lime_green, :linen, :magenta, :maroon, :medium_aqua_marine, :medium_aquamarine, :medium_blue, :medium_orchid, :medium_purple, :medium_sea_green, :medium_slate_blue, :medium_spring_green, :medium_turquoise, :medium_violet_red, :midnight_blue, :mint_cream, :misty_rose, :moccasin, :navajo_white, :navy, :old_lace, :olive, :olive_drab, :olivedrab, :orange, :orange_red, :orchid, :pale_golden_rod, :pale_goldenrod, :pale_green, :pale_turquoise, :pale_violet_red, :papaya_whip, :peach_puff, :peachpuff, :peru, :pink, :plum, :powder_blue, :purple, :red, :rosy_brown, :royal_blue, :saddle_brown, :salmon, :sandy_brown, :sea_green, :sea_shell, :seashell, :sienna, :silver, :sky_blue, :slate_blue, :slate_gray, :slate_grey, :snow, :spring_green, :steel_blue, :tan, :teal, :thistle, :tomato, :turquoise, :violet, :violet_red, :wheat, :white_smoke, :yellow, :yellow_green, :metallic, :white, :black, :gray_scale, :grey_scale]

Extra Dialogs

  • open_file(window as Glimmer::LibUI::WindowProxy = ControlProxy::main_window_proxy): returns selected file (String) or nil if cancelled
  • save_file(window as Glimmer::LibUI::WindowProxy = ControlProxy::main_window_proxy): returns selected file (String) or nil if cancelled

Extra Operations

  • ControlProxy::control_proxies: returns all instantiated control proxies in the application
  • ControlProxy::menu_proxies: returns all instantiated menu proxies in the application
  • ControlProxy::image_proxies: returns all instantiated image proxies in the application
  • ControlProxy::main_window_proxy: returns the first window proxy instantiated in the application
  • ControlProxy#window_proxy: returns the window proxy parent for a control
  • ControlProxy#content {...}: re-opens control's content to add more nested controls or properties

Table API

The table control must first declare its columns via one of these column keywords (mentioned in Supported Keywords):

  • background_color_column: expects color cell values
  • button_column: expects String cell values
  • checkbox_column: expects Boolean cell values
  • checkbox_text_column: expects dual-element Array of Boolean and String cell values
  • checkbox_text_color_column: expects triple-element Array of Boolean, String, and color cell values
  • image_column: expects image cell values (produced by image and image_part keywords as per Supported Keywords)
  • image_text_column: expects dual-element Array of image and String cell values
  • image_text_color_column: expects triple-element Array of image, String, and color cell values
  • text_column: expects String cell values
  • text_color_column: expects dual-element Array of String and color cell values
  • progress_bar_column: expects Integer cell values

Afterwards, it must declare its cell_rows array (Array of Arrays of column cell values) and whether it is editable (Boolean) for all its columns.

Note that the cell_rows property declaration results in "implicit data-binding" between the table control and Array of Arrays (a new innovation) to provide convenience automatic support for:

  • Deleting cell rows: Calling Array#delete, Array#delete_at, Array#delete_if, or any filtering/deletion Array method automatically deletes rows in actual table control
  • Inserting cell rows: Calling Array#<<, Array#push, Array#prepend, or any insertion/addition Array method automatically inserts rows in actual table control
  • Changing cell rows: Calling Array#[]=, Array#map!, or any update Array method automatically updates rows in actual table control

(explicit data-binding supports everything available with implicit data-binding too)

Example (you may copy/paste in girb):

require 'glimmer-dsl-libui'

include Glimmer

data = [
  ['Lisa Sky', 'lisa@sky.com', '720-523-4329', 'Denver', 'CO'],
  ['Jordan Biggins', 'jordan@biggins.com', '617-528-5399', 'Boston', 'MA'],
  ['Mary Glass', 'mary@glass.com', '847-589-8788', 'Elk Grove Village', 'IL'],
  ['Darren McGrath', 'darren@mcgrath.com', '206-539-9283', 'Seattle', 'WA'],
  ['Melody Hanheimer', 'melody@hanheimer.com', '213-493-8274', 'Los Angeles', 'CA'],
]

window('Contacts', 600, 600) {
  margined true

  vertical_box {
    form {
      stretchy false

      @name_entry = entry {
        label 'Name'
      }

      @email_entry = entry {
        label 'Email'
      }

      @phone_entry = entry {
        label 'Phone'
      }

      @city_entry = entry {
        label 'City'
      }

      @state_entry = entry {
        label 'State'
      }
    }

    button('Save Contact') {
      stretchy false

      on_clicked do
        new_row = [@name_entry.text, @email_entry.text, @phone_entry.text, @city_entry.text, @state_entry.text]
        if new_row.map(&:to_s).include?('')
          msg_box_error('Validation Error!', 'All fields are required! Please make sure to enter a value for all fields.')
        else
          data << new_row # automatically inserts a row into the table due to implicit data-binding
          @unfiltered_data = data.dup
          @name_entry.text = ''
          @email_entry.text = ''
          @phone_entry.text = ''
          @city_entry.text = ''
          @state_entry.text = ''
        end
      end
    }

    search_entry { |se|
      stretchy false

      on_changed do
        filter_value = se.text
        @unfiltered_data ||= data.dup
        # Unfilter first to remove any previous filters
        data.replace(@unfiltered_data) # affects table indirectly through implicit data-binding
        # Now, apply filter if entered
        unless filter_value.empty?
          data.filter! do |row_data| # affects table indirectly through implicit data-binding
            row_data.any? do |cell|
              cell.to_s.downcase.include?(filter_value.downcase)
            end
          end
        end
      end
    }

    table {
      text_column('Name')
      text_column('Email')
      text_column('Phone')
      text_column('City')
      text_column('State')

      editable true
      cell_rows data # implicit data-binding to raw data Array of Arrays

      on_changed do |row, type, row_data|
        puts "Row #{row} #{type}: #{row_data}"
        $stdout.flush # for Windows
      end

      on_edited do |row, row_data| # only fires on direct table editing
        puts "Row #{row} edited: #{row_data}"
        $stdout.flush # for Windows
      end
    }
  }
}.show
Mac Windows Linux
glimmer-dsl-libui-mac-form-table.png glimmer-dsl-libui-windows-form-table.png glimmer-dsl-libui-linux-form-table.png

Learn more by checking out examples.

Refined Table

[EARLY ALPHA FEATURE]

refined_table is a custom control provided exclusively by Glimmer DSL for LibUI that includes filtering and pagination support out of the box and can handle very large amounts of data (e.g. 50,000 rows).

It is currently an early alpha feature, so please test-drive and report issues if you encounter any. And, please keep in mind that the API might undergo big changes.

Options (passed as kwargs hash):

  • model_array (Array): array of models for which attributes map to table columns
  • filter_query (String): query term to filter table by; AND-matching multiple words against all columns (e.g. John Illinois returns John Doe from Illinois, USA), a double-quoted exact term match against all columns (e.g. "Urbana Champaign" returns only results from the town of "Urbana Champaign"), or a match against specific columns (e.g. first_name:John, "first name":John, first_name:"John Doe", or "first name":"john doe"). You may mix and match different types of filter queries. All matches are case-insensitive. To customize filtering differently, you may set the filter option explained below.
  • table_columns (Hash): this maps column types to symbols (e.g. text_column becomes :text) with hash options per column
  • table_editable (Boolean) [default: false]: this indicates if all table columns are editable or not.
  • per_page (Integer)
  • page (Integer)
  • visible_page_count (Boolean) [default: false]: shows "of PAGE_COUNT pages" after page entry field
  • filter (Lambda) [default: Glimmer::LibUI::CustomControl::RefinedTable::FILTER_DEFAULT]: enables setting custom filter that accepts row_hash (mapping table column names to row values) and query string as arguments, and it is supposed to return true or false for whether to show a row or filter it out.

API:

  • refined_model_array (Array): model_array with filtering and pagination applied (useful to grab a table row model by index).
  • filtered_model_array (Array): model_array with filtering applied, but without pagination
  • table_proxy: control proxy object for the table contained in the refined_table custom control

If the initial model_array has no more than a single page of data, then pagination buttons are hidden (but, the filter field remains).

Example code:

refined_table(
  model_array: contacts,
  table_columns: {
    'Name'  => {button: {on_clicked: ->(row) {puts row}}},
    'Colored Email' => :text_color,
    'Phone' => {text: {editable: true}},
    'City'  => :text,
    'State' => :text,
  },
  table_editable: true, # default value is false
  per_page: 20, # row count per page
  # page: 1, # initial page is 1
  # visible_page_count: true, # page count can be shown if preferred
)
Mac Windows Linux
glimmer-dsl-libui-mac-paginated-refined-table.png glimmer-dsl-libui-windows-paginated-refined-table.png glimmer-dsl-libui-linux-paginated-refined-table.png

Learn more in the Paginated Refined Table example.

Area API

The area control is a canvas-like control for drawing paths that can be used in one of two ways:

  • Declaratively via stable paths: useful for stable paths that will not change often later on. Simply nest path and figures like rectangle and all drawing logic is generated automatically. Path proxy objects are preserved across redraws assuming there would be relatively few stable paths (mostly for decorative reasons).
  • Semi-declaratively via on_draw listener dynamic paths: useful for more dynamic paths that will definitely change very often. Open an on_draw listener block that receives an area_draw_params argument and nest path and figures like rectangle and all drawing logic is generated automatically. Path proxy objects are destroyed (thrown-away) at the end of drawing, thus having less memory overhead for drawing thousands of dynamic paths.

Note that when nesting an area directly underneath window (without a layout control like vertical_box), it is automatically reparented with vertical_box in between the window and area since it would not show up on Linux otherwise.

Here is an example of a declarative area with a stable path (you may copy/paste in girb):

require 'glimmer-dsl-libui'

include Glimmer

window('Basic Area', 400, 400) {
  margined true

  vertical_box {
    area {
      path { # a stable path is added declaratively
        rectangle(0, 0, 400, 400)

        fill r: 102, g: 102, b: 204, a: 1.0
      }
    }
  }
}.show
Mac Windows Linux
glimmer-dsl-libui-mac-basic-area.png glimmer-dsl-libui-windows-basic-area.png glimmer-dsl-libui-linux-basic-area.png

Here is the same example using a semi-declarative area with on_draw listener that receives a area_draw_params argument and a dynamic path (you may copy/paste in girb):

require 'glimmer-dsl-libui'

include Glimmer

window('Basic Area', 400, 400) {
  margined true

  vertical_box {
    area {
      on_draw do |area_draw_params|
        path { # a dynamic path is added semi-declaratively inside on_draw block
          rectangle(0, 0, 400, 400)

          fill r: 102, g: 102, b: 204, a: 1.0
        }
      end
    }
  }
}.show

Check examples/dynamic_area.rb for a more detailed semi-declarative example.

Scrolling Area

scrolling_area(width as Numeric = main_window.width, height as Numeric = main_window.height) is similar to area, but has the following additional methods:

  • scroll_to(x as Numeric, y as Numeric, width as Numeric = main_window.width, height as Numeric = main_window.height): scrolls to x/y location with width and height viewport size.
  • set_size(width as Numeric, height as Numeric): set size of scrolling area, which must must exceed that of visible viewport in order for scrolling to be enabled.
Mac Windows Linux
glimmer-dsl-libui-mac-dynamic-area.png glimmer-dsl-libui-mac-dynamic-area-updated.png glimmer-dsl-libui-windows-dynamic-area.png glimmer-dsl-libui-windows-dynamic-area-updated.png glimmer-dsl-libui-linux-dynamic-area.png glimmer-dsl-libui-linux-dynamic-area-updated.png

Check examples/basic_scrolling_area.rb for a more detailed example.

Area Path Shapes

area can have geometric shapes drawn by adding path elements.

To add path shapes under an area, you can do so:

  • Explicitly: by adding path under area and nesting shapes (e.g. rectangle) underneath that share the same fill/stroke/transform properties
  • Implicitly: by adding shapes directly under area when the shapes have unique fill/stroke/transform properties (Glimmer DSL for LibUI automatically constructs paths as intermediary parents for shapes directly added under area)

path can receive a draw_fill_mode argument that can accept values :winding or :alternate and defaults to :winding.

Available path shapes (that can be nested explicitly under path or implicitly under area directly):

  • rectangle(x as Numeric, y as Numeric, width as Numeric, height as Numeric)
  • square(x as Numeric, y as Numeric, length as Numeric)
  • arc(x_center as Numeric, y_center as Numeric, radius as Numeric, start_angle as Numeric, sweep as Numeric, is_negative as Boolean)
  • circle(x_center as Numeric, y_center as Numeric, radius as Numeric)
  • line(x as Numeric, y as Numeric, end_x = nil as Numeric, end_y = nil as Numeric): must be placed in a figure if only x/y are specified or have end_x/end_y otherwise if outside of figure (check polyline/polygon alternatives that do not require a figure)
  • bezier(x = nil as Numeric, y = nil as Numeric, c1_x as Numeric, c1_y as Numeric, c2_x as Numeric, c2_y as Numeric, end_x as Numeric, end_y as Numeric): must be placed in a figure if x/y are not specified or have x/y as start point otherwise if outside of figure (check polybezier alternative that does not require a figure)
  • polygon(point_array as Array of Arrays of Numeric or Array of Numeric): shortcut for a closed figure of lines; can receive points as [[x1, y1], [x2, y2], ...] or [x1, y1, x2, y2, ...]
  • polyline(point_array as Array of Arrays of Numeric or Array of Numeric): shortcut for an open figure of lines; can receive points as [[x1, y1], [x2, y2], ...] or [x1, y1, x2, y2, ...]
  • polybezier(point_array as Array of Arrays of Numeric or Array of Numeric): shortcut for an open figure of beziers; can receive points as [[start_x1, start_y1], [c1_x2, c1_y2, c2_x2, c2_y2, end_x2, end_y2], [c1_x3, c1_y3, c2_x3, c2_y3, end_x3, end_y3], ...] or [start_x1, start_y1, c1_x2, c1_y2, c2_x2, c2_y2, end_x2, end_y2, c1_x3, c1_y3, c2_x3, c2_y3, end_x3, end_y3, ...]
  • figure(x=nil as Numeric, y=nil as Numeric) (composite that can contain other shapes) (can set closed true to connect last point to first point automatically)

Check examples/area_gallery.rb for an overiew of all path shapes.

Mac Windows Linux
glimmer-dsl-libui-mac-area-gallery.png glimmer-dsl-libui-windows-area-gallery.png glimmer-dsl-libui-linux-area-gallery.png
Area Path Shape Methods
  • ::parameters: returns parameters of a shape class
  • #bounding_box: returns Array containing [min_x, min_y, width, height]
  • #contain?(*point, outline: false, distance_tolerance: 0): Returns if point ([x, y] Array or args) is inside the shape when outline is false or on the outline when outline is true. distance_tolerance is used when outline is true as a fuzz factor for declaring a point on the outline of the shape (e.g. helps users select a shape from its outline more easily).
  • #include?(*point): Returns if point ([x, y] Array or args) is inside the shape when filled (having fill value) or on the outline when stroked (not having fill value yet stroke value only)
  • #perfect_shape: returns PerfectShape object matching the libui shape.
  • #move_by(x_delta, y_delta) (alias: translate): moves (translates) shape by x,y delta
  • #move(x, y): moves (translates) shape to x,y coordinates (in the top-left x,y corner of the shape)
  • #min_x: minimum x coordinate of shape (of top-left corner)
  • #min_y: minimum y coordinate of shape (of top-left corner)
  • #max_x: maximum x coordinate of shape (of bottom-right corner)
  • #max_y: maximum y coordinate of shape (of bottom-right corner)
  • #center_point (Array of x,y): center point of shape
  • #center_x: center x coordinate of shape
  • #center_y: center y coordinate of shape

Area Text

To draw text in an area, you simply nest a text(x, y, width) control directly under area or inside a on_draw listener, and then nest attributed string {[attributes]; string_value} controls underneath it returning an actual String (think of them as the <span> or <p> element in html, which contains a string of text). Alternatively, you can nest attributed string(string_value) {[attributes]} if string_value is a short single-line string. An attributed string value can be changed dynamically via its string property.

text has the following properties:

  • default_font:
  • align: :left (default), :center, or :right (align currently seems not to work on the Mac)
  • x: x coordinate in relation to parent area top-left corner
  • y: y coordinate in relation to parent area top-left corner
  • width (default: area width - x*2): width of text to display

string has the following properties:

  • font: font descriptor hash consisting of :family, :size, :weight ([:minimum, :thin, :ultra_light, :light, :book, :normal, :medium, :semi_bold, :bold, :ultra_bold, :heavy, :ultra_heavy, :maximum]), :italic ([:normal, :oblique, :italic]), and :stretch ([:ultra_condensed, :extra_condensed, :condensed, :semi_condensed, :normal, :semi_expanded, :expanded, :extra_expanded, :ultra_expanded]) key values
  • color: rgba, hex, or X11 color
  • background: rgba, hex, or X11 color
  • underline: one of :none, :single, :double, :suggestion, :color_custom, :color_spelling, :color_grammar, :color_auxiliary
  • underline_color: one of :spelling, :grammar, :auxiliary, rgba, hex, or X11 color
  • open_type_features: Open Type Features (https://www.microsoft.com/typography/otspec/featuretags.htm) consist of open_type_tags nested in content block, which accept (a, b, c, d, Integer) arguments.
  • string: string value (String)

Example (you may copy/paste in girb):

require 'glimmer-dsl-libui'

include Glimmer

window('area text drawing') {
  area {
    text {
      default_font family: 'Helvetica', size: 12, weight: :normal, italic: :normal, stretch: :normal

      string('This ') {
        font size: 20, weight: :bold, italic: :normal, stretch: :normal
        color r: 128, g: 0, b: 0, a: 1
      }

      string('is ') {
        font size: 20, weight: :bold, italic: :normal, stretch: :normal
        color r: 0, g: 128, b: 0, a: 1
      }

      string('a ') {
        font size: 20, weight: :bold, italic: :normal, stretch: :normal
        color r: 0, g: 0, b: 128, a: 1
      }

      string('short ') {
        font size: 20, weight: :bold, italic: :italic, stretch: :normal
        color r: 128, g: 128, b: 0, a: 1
      }

      string('attributed ') {
        font size: 20, weight: :bold, italic: :normal, stretch: :normal
        color r: 0, g: 128, b: 128, a: 1
      }

      string("string \n\n") {
        font size: 20, weight: :bold, italic: :normal, stretch: :normal
        color r: 128, g: 0, b: 128, a: 1
      }

      string {
        font family: 'Georgia', size: 13, weight: :medium, italic: :normal, stretch: :normal
        color r: 0, g: 128, b: 255, a: 1
        background r: 255, g: 255, b: 0, a: 0.5
        underline :single
        underline_color :spelling
        open_type_features {
          open_type_tag 'l', 'i', 'g', 'a', 0
          open_type_tag 'l', 'i', 'g', 'a', 1
        }

        "This is a demonstration\n" \
        "of a very long\n" \
        "attributed string\n" \
        "spanning multiple lines\n\n"
      }
    }
  }
}.show


You may checkout examples/basic_draw_text.rb and examples/custom_draw_text.rb for examples of using text inside area.

Mac Windows Linux
glimmer-dsl-libui-mac-custom-draw-text-changed.png glimmer-dsl-libui-windows-custom-draw-text-changed.png glimmer-dsl-libui-linux-custom-draw-text-changed.png

Area Image

(ALPHA FEATURE)

libui does not support image rendering outside of table yet. However, Glimmer DSL for LibUI adds a special image(file as String path or web URL, width as Numeric, height as Numeric) custom control that renders an image unto an area pixel by pixel (and when possible to optimize, line by line).

Given that it is very new and is not a libui-native control, please keep these notes in mind:

  • It only supports the .png file format.
  • libui pixel-by-pixel rendering performance is slow.
  • Including an image inside an area on_draw listener improves performance due to not retaining pixel/line data in memory.
  • Supplying width and height options greatly improves performance when shrinking image (e.g. image('somefile.png', width: 24, height: 24)). You can also supply one of the two dimensions, and the other one gets calculated automatically while preserving original aspect ratio (e.g. image('somefile.png', height: 24))
  • Glimmer DSL for LibUI lets you optionally specify x and y in addition to file, width and height (5 arguments total) to offset image location.

Currently, it is recommended to use image with very small width and height values only (e.g. 24x24).

Setting a transform matrix is supported under image just like it is under path and text inside area.

Example of using image declaratively (you may copy/paste in girb):

Mac Windows Linux
glimmer-dsl-libui-mac-basic-image.png glimmer-dsl-libui-windows-basic-image.png glimmer-dsl-libui-linux-basic-image.png
require 'glimmer-dsl-libui'

include Glimmer

window('Basic Image', 96, 96) {
  area {
    image(File.expand_path('icons/glimmer.png', __dir__), height: 96) # width is automatically calculated from height while preserving original aspect ratio
#     image(File.expand_path('icons/glimmer.png', __dir__), width: 96, height: 96) # you can specify both width and height options
#     image(File.expand_path('icons/glimmer.png', __dir__), 96, 96) # you can specify width, height as args
#     image(File.expand_path('../icons/glimmer.png', __dir__), 0, 0, 96, 96) # you can specify x, y, width, height args as alternative
#     image(File.expand_path('../icons/glimmer.png', __dir__), x: 0, y: 0, width: 96, height: 96) # you can specify x, y, width, height options as alternative
  }
}.show

Example of better performance via on_draw (you may copy/paste in girb):

require 'glimmer-dsl-libui'

include Glimmer

window('Basic Image', 96, 96) {
  area {
    on_draw do |area_draw_params|
      image(File.expand_path('icons/glimmer.png', __dir__), 96, 96)
    end
  }
}.show

Example of using image declaratively with explicit properties (you may copy/paste in girb):

require 'glimmer-dsl-libui'

include Glimmer

window('Basic Image', 96, 96) {
  area {
    image {
      file File.expand_path('icons/glimmer.png', __dir__)
#       x 0 # default
#       y 0 # default
      width 96
      height 96
    }
  }
}.show

Example of better performance via on_draw with explicit properties (you may copy/paste in girb):

require 'glimmer-dsl-libui'

include Glimmer

window('Basic Image', 96, 96) {
  area {
    on_draw do |area_draw_params|
      image {
        file File.expand_path('icons/glimmer.png', __dir__)
        width 96
        height 96
      }
    end
  }
}.show

If you need to render an image pixel by pixel (e.g. to support a format other than .png) for very exceptional scenarios, you may use this example as a guide, including a line-merge optimization for neighboring horizontal pixels with the same color:

# This is the manual way of rendering an image unto an area control.
# It could come in handy in special situations.
# Otherwise, it is recommended to simply utilize the `image` control that
# can be nested under area or area on_draw listener to automate all this work.

require 'glimmer-dsl-libui'
require 'chunky_png'

include Glimmer

puts 'Parsing image...'; $stdout.flush

f = File.open(File.expand_path('icons/glimmer.png', __dir__))
canvas = ChunkyPNG::Canvas.from_io(f)
f.close
canvas.resample_nearest_neighbor!(96, 96)
data = canvas.to_rgba_stream
width = canvas.width
height = canvas.height
puts "Image width: #{width}"
puts "Image height: #{height}"

puts 'Parsing colors...'; $stdout.flush

color_maps = height.times.map do |y|
  width.times.map do |x|
    r = data[(y*width + x)*4].ord
    g = data[(y*width + x)*4 + 1].ord
    b = data[(y*width + x)*4 + 2].ord
    a = data[(y*width + x)*4 + 3].ord
    {x: x, y: y, color: {r: r, g: g, b: b, a: a}}
  end
end.flatten
puts "#{color_maps.size} pixels to render..."; $stdout.flush

puts 'Parsing shapes...'; $stdout.flush

shape_maps = []
original_color_maps = color_maps.dup
indexed_original_color_maps = Hash[original_color_maps.each_with_index.to_a]
color_maps.each do |color_map|
  index = indexed_original_color_maps[color_map]
  @rectangle_start_x ||= color_map[:x]
  @rectangle_width ||= 1
  if color_map[:x] < width - 1 && color_map[:color] == original_color_maps[index + 1][:color]
    @rectangle_width += 1
  else
    if color_map[:x] > 0 && color_map[:color] == original_color_maps[index - 1][:color]
      shape_maps << {x: @rectangle_start_x, y: color_map[:y], width: @rectangle_width, height: 1, color: color_map[:color]}
    else
      shape_maps << {x: color_map[:x], y: color_map[:y], width: 1, height: 1, color: color_map[:color]}
    end
    @rectangle_width = 1
    @rectangle_start_x = color_map[:x] == width - 1 ? 0 : color_map[:x] + 1
  end
end
puts "#{shape_maps.size} shapes to render..."; $stdout.flush

puts 'Rendering image...'; $stdout.flush

window('Basic Image', 96, 96) {
  area {
    on_draw do |area_draw_params|
      shape_maps.each do |shape_map|
        path {
          rectangle(shape_map[:x], shape_map[:y], shape_map[:width], shape_map[:height])

          fill shape_map[:color]
        }
      end
    end
  }
}.show

One final note is that in Linux, table images grow and shrink with the image size unlike on the Mac where table row heights are constant regardless of image sizes. As such, you may be able to repurpose a table with a single image column and a single row as an image control with more native libui rendering if you are only targeting Linux with your app.

linux table image

Check out examples/basic_image.rb (all versions) for examples of using image Glimmer custom control.

Colors

fill and stroke accept X11 color Symbols/Strings like :skyblue and 'sandybrown' or 6-char hex or 3-char hex-shorthand (as Integer or String with or without 0x prefix)

Available X11 colors can be obtained through Glimmer::LibUI.x11_colors method.

Check Basic Transform example for use of X11 colors.

Check Histogram example for use of hex colors.

Area Draw Params

The area_draw_params Hash argument for on_draw block is a hash consisting of the following keys:

  • :context: the drawing context object
  • :area_width: area width
  • :area_height: area height
  • :clip_x: clip region top-left x coordinate
  • :clip_y: clip region top-left y coordinate
  • :clip_width: clip region width
  • :clip_height: clip region height

In general, it is recommended to use declarative stable paths whenever feasible since they require less code and simpler maintenance. But, in more advanced cases, semi-declarative dynamic paths could be used instead, especially if there are thousands of dynamic paths that need maximum performance and low memory footprint.

Area Listeners

area supports a number of keyboard and mouse listeners to enable observing the control for user interaction to execute some logic.

The same listeners can be nested directly under area shapes like rectangle and circle, and Glimmer DSL for LibUI will automatically detect when the mouse lands within those shapes to constrain triggering the listeners by the shape regions.

area supported listeners are:

  • on_key_event {|area_key_event| ...}: general catch-all key event (recommend using fine-grained key events below instead)
  • on_key_down {|area_key_event| ...}
  • on_key_up {|area_key_event| ...}
  • on_mouse_event {|area_mouse_event| ...}: general catch-all mouse event (recommend using fine-grained mouse events below instead)
  • on_mouse_down {|area_mouse_event| ...}
  • on_mouse_up {|area_mouse_event| ...}
  • on_mouse_drag_started {|area_mouse_event| ...}
  • on_mouse_dragged {|area_mouse_event| ...}
  • on_mouse_dropped {|area_mouse_event| ...}
  • on_mouse_entered {...}
  • on_mouse_exited {...}
  • on_mouse_crossed {|left| ...} (NOT RECOMMENDED; it does what on_mouse_entered and on_mouse_exited do by returning a left argument indicating if mouse left area)
  • on_drag_broken {...} (NOT RECOMMENDED; varies per platforms; use on_mouse_dropped instead)

The area_mouse_event Hash argument for mouse events that receive it (e.g. on_mouse_up, on_mouse_dragged) consist of the following hash keys:

  • :x: mouse x location in relation to area's top-left-corner
  • :y: mouse y location in relation to area's top-left-corner
  • :area_width: area current width
  • :area_height: area current height
  • :down: mouse pressed button (e.g. 1 is left button, 3 is right button)
  • :up: mouse depressed button (e.g. 1 is left button, 3 is right button)
  • :count: count of mouse clicks (e.g. 2 for double-click, 1 for single-click)
  • :modifers: Array of Symbols from one of the following: [:command, :shift, :alt, :control]
  • :held: mouse held button during dragging (e.g. 1 is left button, 4 is right button)

The area_key_event Hash argument for keyboard events that receive it (e.g. on_key_up, on_key_down) consist of the following hash keys:

  • :key: key character (String)
  • :key_value (alias: :key_code): key code value (Integer). Useful in rare cases for numeric processing of keys instead of dealing with as :key character String
  • :ext_key: non-character extra key (Symbol) from Glimmer::LibUI.enum_symbols(:ext_key) such as :left, :right, :escape, :insert
  • :ext_key_value: non-character extra key value (Integer). Useful in rare cases for numeric processing of extra keys instead of dealing with as :ext_key Symbol
  • :modifier: modifier key pressed alone (e.g. :shift or :control)
  • :modifiers: modifier keys pressed simultaneously with :key, :ext_key, or :modifier
  • :up: indicates if key has been released or not (Boolean)

Area Methods/Attributes

To redraw an area, you may call the #queue_redraw_all method, or simply #redraw.

area has the following Glimmer-added API methods/attributes:

  • request_auto_redraw: requests auto redraw upon changes to nested stable path or shapes
  • pause_auto_redraw: pause auto redraw upon changes to nested stable path or shapes (useful to avoid too many micro-change redraws, to group all redraws as one after many micro-changes)
  • resume_auto_redraw: resume auto redraw upon changes to nested stable path or shapes
  • auto_redraw_enabled/auto_redraw_enabled?/auto_redraw_enabled=: an attribute to disable/enable auto redraw on an area upon changes to nested stable path or shapes

Area Transform Matrix

A transform matrix can be set on a path by building a matrix(m11 = nil, m12 = nil, m21 = nil, m22 = nil, m31 = nil, m32 = nil) {operations} proxy object and then setting via transform property, or alternatively by building and setting the matrix in one call to transform(m11 = nil, m12 = nil, m21 = nil, m22 = nil, m31 = nil, m32 = nil) {operations} passing it the matrix arguments and/or content operations.

When instantiating a matrix object, it always starts with identity matrix.

Here are the following operations that can be performed in a matrix body:

  • identity [alias: set_identity]: resets matrix to identity matrix
  • translate(x as Numeric, y as Numeric)
  • scale(x_center = 0 as Numeric, y_center = 0 as Numeric, x as Numeric, y as Numeric)
  • skew(x = 0 as Numeric, y = 0 as Numeric, x_amount as Numeric, y_amount as Numeric)
  • rotate(x = 0 as Numeric, y = 0 as Numeric, degrees as Numeric)

Example of using transform matrix (you may copy/paste in girb):

require 'glimmer-dsl-libui'

include Glimmer

window('Basic Transform', 350, 350) {
  area {
    path {
      square(0, 0, 350)

      fill r: 255, g: 255, b: 0
    }
    40.times do |n|
      path {
        square(0, 0, 100)

        fill r: [255 - n*5, 0].max, g: [n*5, 255].min, b: 0, a: 0.5
        stroke :black, thickness: 2
        transform {
          skew 0.15, 0.15
          translate 50, 50
          rotate 100, 100, -9 * n
          scale 1.1, 1.1
        }
      }
    end
  }
}.show

Keep in mind that this part could be written differently when there is a need to reuse the matrix:

transform {
  translate 100, 100
  rotate 100, 100, -9 * n
}

Alternatively:

m1 = matrix {
  translate 100, 100
  rotate 100, 100, -9 * n
}
transform m1
# and then reuse m1 elsewhere too

You can set a matrix/transform on area directly to conveniently apply to all nested paths too.

Note that area, path, and nested shapes are all truly declarative, meaning they do not care about the ordering of calls to fill, stroke, and transform. Furthermore, any transform that is applied is reversed at the end of the block, so you never have to worry about the ordering of transform calls among different paths. You simply set a transform on the paths that need it and it is guaranteed to be called before all its content is drawn, and then undone afterwards to avoid affecting later paths. Matrix transform can be set on an entire area too, applying to all nested paths.

Area Animation

If you need to animate area vector graphics, you just have to use the Glimmer::LibUI::timer method along with making changes to shape attributes.

Spinner example that has a fully customizable method-based custom control called spinner, which is destroyed if you click on it (you may copy/paste in girb):

require 'glimmer-dsl-libui'

class SpinnerExample
  include Glimmer

  SIZE = 120

  def initialize
    create_gui
  end

  def launch
    @main_window.show
  end

  def create_gui
    @main_window = window {
      title 'Spinner'
      content_size SIZE*2, SIZE*2

      horizontal_box {
        padded false

        vertical_box {
          padded false

          spinner(size: SIZE)
          spinner(size: SIZE, fill_color: [42, 153, 214])
        }

        vertical_box {
          padded false

          spinner(size: SIZE/2.0, fill_color: :orange)
          spinner(size: SIZE/2.0, fill_color: {x0: 0, y0: 0, x1: SIZE/2.0, y1: SIZE/2.0, stops: [{pos: 0.25, r: 204, g: 102, b: 204}, {pos: 1, r: 2, g: 2, b: 254}]})
          spinner(size: SIZE/2.0, fill_color: :green, unfilled_color: :yellow)
          spinner(size: SIZE/2.0, fill_color: :white, unfilled_color: :gray, background_color: :black)
        }
      }
    }
  end

  def spinner(size: 40.0, fill_color: :gray, background_color: :white, unfilled_color: {r: 243, g: 243, b: 243}, donut_percentage: 0.25)
    arc1 = arc2 = nil
    area { |the_area|
      rectangle(0, 0, size, size) {
        fill background_color
      }
      circle(size/2.0, size/2.0, size/2.0) {
        fill fill_color
      }
      arc1 = arc(size/2.0, size/2.0, size/2.0, 0, 180) {
        fill unfilled_color
      }
      arc2 = arc(size/2.0, size/2.0, size/2.0, 90, 180) {
        fill unfilled_color
      }
      circle(size/2.0, size/2.0, (size/2.0)*(1.0 - donut_percentage)) {
        fill background_color
      }

      on_mouse_up do
        the_area.destroy
      end
    }.tap do
      Glimmer::LibUI.timer(0.05) do
        delta = 10
        arc1.start_angle += delta
        arc2.start_angle += delta
      end
    end
  end
end

SpinnerExample.new.launch

mac spinner

Smart Defaults and Conventions

  • horizontal_box, vertical_box, grid, and form controls have padded as true upon instantiation to ensure more user-friendly GUI by default
  • group controls have margined as true upon instantiation to ensure more user-friendly GUI by default
  • All controls nested under a horizontal_box, vertical_box, and form have stretchy property (fill maximum space) as true by default (passed to box_append/form_append method)
  • If an event listener is repeated under a control (e.g. two on_clicked {} listeners under button), it does not overwrite the previous listener, yet it is added to an Array of listeners for the event. Glimmer DSL for LibUI provides multiple-event-listener support unlike LibUI
  • window instatiation args can be left off, having the following defaults when unspecified: title as '', width as 190, height as 150, and has_menubar as true)
  • window has an on_closing listener by default that quits application upon hitting close button if window is the main window, not a child window (the behavior can be overridden with a manual on_closing implementation that returns integer 1/true for closing and 0/false for remaining open).
  • group has title property default to '' if not specified in instantiation args, so it can be instantiated without args with title property specified in nested block (e.g. group {title 'Address'; ...})
  • button, checkbox, and label have text default to '' if not specified in instantiation args, so they can be instantiated without args with text property specified in nested block (e.g. button {text 'Greet'; on_clicked {puts 'Hello'}})
  • quit_menu_item has an on_clicked listener by default that quits application upon selecting the quit menu item (can be overridden with a manual on_clicked implementation that returns integer 0 for success)
  • If an on_closing listener was defined on window and it does not return an integer, default exit behavior is assumed (window.destroy is called followed by LibUI.quit, returning 0).
  • If multiple on_closing listeners were added for window, and none return an integer, they are all executed. On the other hand, if one of them returns an integer, it is counted as the final return value and stops the chain of listener execution.
  • If an on_clicked listener was defined on quit_menu_item and it does not return an integer, default exit behavior is assumed (quit_menu_item.destroy and main_window.destroy are called followed by LibUI.quit, returning 0).
  • If multiple on_clicked listeners were added for quit_menu_item, and none return an integer, they are all executed. On the other hand, if one of them returns an integer, it is counted as the final return value and stops the chain of listener execution.
  • All boolean property readers return true or false in Ruby instead of the libui original 0 or 1 in C.
  • All boolean property writers accept true/false in addition to 1/0 in Ruby
  • All string property readers return a String object in Ruby instead of the libui Fiddle pointer object.
  • Automatically allocate font descriptors upon instantiating font_button controls and free them when destroying font_button controls
  • Automatically allocate color value pointers upon instantiating color_button controls and free them when destroying color_button controls
  • On the Mac, if no menu items were added, an automatic quit_menu_item is added to enable quitting with CTRL+Q
  • When destroying a control nested under a horizontal_box or vertical_box, it is automatically deleted from the box's children
  • When destroying a control nested under a form, it is automatically deleted from the form's children
  • When destroying a control nested under a window or group, it is automatically unset as their child to allow successful destruction
  • When destroying a control that has a data-binding to a model attribute, the data-binding observer registration is automatically deregistered
  • For date_time_picker, date_picker, and time_picker, make sure time hash values for mon, wday, and yday are 1-based instead of libui original 0-based values, and return dst as Boolean instead of isdst as 1/0
  • Smart defaults for grid child properties are left (0), top (0), xspan (1), yspan (1), hexpand (false), halign (:fill), vexpand (false), and valign (:fill)
  • The table control automatically constructs required TableModelHandler, TableModel, and TableParams, calculating all their arguments from cell_rows and editable properties (e.g. NumRows) as well as nested columns (e.g. text_column)
  • Table model instances are automatically freed from memory after window is destroyed.
  • Table cell_rows data has implicit data-binding to table cell values for deletion, insertion, and change (done by diffing cell_rows value before and after change and auto-informing table of deletions [LibUI.table_model_row_deleted], insertions [LibUI.table_model_row_deleted], and changes [LibUI.table_model_row_changed]). When deleting data rows from cell_rows array, then actual rows from the table are automatically deleted. When inserting data rows into cell_rows array, then actual table rows are automatically inserted. When updating data rows in cell_rows array, then actual table rows are automatically updated.
  • image instances are automatically freed from memory after window is destroyed.
  • image width and height can be left off if it has one image_part only as they default to the same width and height of the image_part
  • Automatically provide shifted :key characters in area_key_event provided in area key listeners on_key_event, on_key_down, and on_key_up
  • scrolling_area width and height default to main window width and height if not specified.
  • scrolling_area #scroll_to 3rd and 4th arguments (width and height) default to main window width and height if not specified.
  • area paths are specified declaratively with shapes/figures underneath (e.g. rectangle), and area draw listener is automatically generated
  • area path shapes can be added directly under area without declaring path explicitly as a convenient shorthand
  • line and bezier automatically start a new figure if placed outside of figure
  • Observe figure properties (e.g. rectangle width) for changes and automatically redraw containing area accordingly
  • Observe path fill and stroke hashes for changes and automatically redraw containing area accordingly
  • Observe text and string properties for changes and automatically redraw containing area accordingly
  • All controls are protected from garbage collection until no longer needed (explicitly destroyed), so there is no need to worry about surprises.
  • All resources are freed automatically once no longer needed or left to garbage collection.
  • When nesting an area directly underneath window (without a layout control like vertical_box), it is automatically reparented with vertical_box in between the window and area since it would not show up on Linux otherwise.
  • Colors may be passed in as a hash of :r, :g, :b, :a, or :red, :green, :blue, :alpha, or X11 color like :skyblue, or 6-char hex or 3-char hex (as Integer or String with or without 0x prefix)
  • Color alpha value defaults to 1.0 when not specified.

Custom Keywords

Custom keywords can be defined to represent custom controls (components) that provide new features or act as composites of existing controls that need to be reused multiple times in an application or across multiple applications. Custom keywords save a lot of development time, improving productivity and maintainability immensely.

For example, you can define a custom address_view control as an aggregate of multiple label controls to reuse multiple times as a standard address View, displaying street, city, state, and zip code.

There are two ways to define custom keywords:

  • Method-Based: simply define a method representing the custom control you want (e.g. address_view) with any arguments needed (e.g. address(address_model)).
  • Class-Based: define a class matching the camelcased name of the custom control by convention (e.g. the address_view custom control keyword would have a class called AddressView) and include Glimmer::LibUI::CustomControl. Classes add the benefit of being able to distribute the custom controls into separate files and reuse externally from multiple places or share via Ruby gems.

It is OK to use the terms "custom keyword" and "custom control" synonymously though "custom keyword" is a broader term that covers things other than controls too like custom shapes (e.g. cylinder), custom attributed strings (e.g. alternating_color_string), and custom transforms (isometric_transform).

Example that defines form_field, address_form, label_pair, and address_view keywords (you may copy/paste in girb):

require 'glimmer-dsl-libui'
require 'facets'

include Glimmer

Address = Struct.new(:street, :p_o_box, :city, :state, :zip_code)

def form_field(model, attribute)
  attribute = attribute.to_s
  entry { |e|
    label attribute.underscore.split('_').map(&:capitalize).join(' ')
    text <=> [model, attribute]
  }
end

def address_form(address_model)
  form {
    form_field(address_model, :street)
    form_field(address_model, :p_o_box)
    form_field(address_model, :city)
    form_field(address_model, :state)
    form_field(address_model, :zip_code)
  }
end

def label_pair(model, attribute, value)
  horizontal_box {
    label(attribute.to_s.underscore.split('_').map(&:capitalize).join(' '))
    label(value.to_s) {
      text <= [model, attribute]
    }
  }
end

def address_view(address_model)
  vertical_box {
    address_model.each_pair do |attribute, value|
      label_pair(address_model, attribute, value)
    end
  }
end

address1 = Address.new('123 Main St', '23923', 'Denver', 'Colorado', '80014')
address2 = Address.new('2038 Park Ave', '83272', 'Boston', 'Massachusetts', '02101')

window('Method-Based Custom Keyword') {
  margined true

  horizontal_box {
    vertical_box {
      label('Address 1') {
        stretchy false
      }

      address_form(address1)

      horizontal_separator {
        stretchy false
      }

      label('Address 1 (Saved)') {
        stretchy false
      }

      address_view(address1)
    }

    vertical_separator {
      stretchy false
    }

    vertical_box {
      label('Address 2') {
        stretchy false
      }

      address_form(address2)

      horizontal_separator {
        stretchy false
      }

      label('Address 2 (Saved)') {
        stretchy false
      }

      address_view(address2)
    }
  }
}.show


You can also define Custom Window keywords, that is custom controls with window being the body root. These are also known as Applications. To define a Custom Window, you include Glimmer::LibUI::CustomWindow or include Glimmer:LibUI::Application and then you can invoke the ::launch method on the class.

Example (you may copy/paste in girb):

require 'glimmer-dsl-libui'
require 'facets'

Address = Struct.new(:street, :p_o_box, :city, :state, :zip_code)

class FormField
  include Glimmer::LibUI::CustomControl

  options :model, :attribute

  body {
    entry { |e|
      label attribute.to_s.underscore.split('_').map(&:capitalize).join(' ')
      text <=> [model, attribute]
    }
  }
end

class AddressForm
  include Glimmer::LibUI::CustomControl

  options :address

  body {
    form {
      form_field(model: address, attribute: :street)
      form_field(model: address, attribute: :p_o_box)
      form_field(model: address, attribute: :city)
      form_field(model: address, attribute: :state)
      form_field(model: address, attribute: :zip_code)
    }
  }
end

class LabelPair
  include Glimmer::LibUI::CustomControl

  options :model, :attribute, :value

  body {
    horizontal_box {
      label(attribute.to_s.underscore.split('_').map(&:capitalize).join(' '))
      label(value.to_s) {
        text <= [model, attribute]
      }
    }
  }
end

class AddressView
  include Glimmer::LibUI::CustomControl

  options :address

  body {
    vertical_box {
      address.each_pair do |attribute, value|
        label_pair(model: address, attribute: attribute, value: value)
      end
    }
  }
end

class ClassBasedCustomControls
  include Glimmer::LibUI::Application # alias: Glimmer::LibUI::CustomWindow

  before_body do
    @address1 = Address.new('123 Main St', '23923', 'Denver', 'Colorado', '80014')
    @address2 = Address.new('2038 Park Ave', '83272', 'Boston', 'Massachusetts', '02101')
  end

  body {
    window('Class-Based Custom Keyword') {
      margined true

      horizontal_box {
        vertical_box {
          label('Address 1') {
            stretchy false
          }

          address_form(address: @address1)

          horizontal_separator {
            stretchy false
          }

          label('Address 1 (Saved)') {
            stretchy false
          }

          address_view(address: @address1)
        }

        vertical_separator {
          stretchy false
        }

        vertical_box {
          label('Address 2') {
            stretchy false
          }

          address_form(address: @address2)

          horizontal_separator {
            stretchy false
          }

          label('Address 2 (Saved)') {
            stretchy false
          }

          address_view(address: @address2)
        }
      }
    }
  }
end

ClassBasedCustomControls.launch


The area control can be utilized to build non-native custom controls from scratch by leveraging vector graphics, formattable text, keyboard events, and mouse events. This is demonstrated in the Area-Based Custom Controls example.

Defining custom keywords enables unlimited extension of the Glimmer GUI DSL. The sky is the limit on what can be done with custom keywords as a result. You can compose new visual vocabulary to build applications in any domain from higher concepts rather than mere standard controls. For example, in a traffic signaling app, you could define street, light_signal, traffic_sign, and car as custom keywords and build your application from these concepts directly, saving enormous time and achieving much higher productivity.

Learn more from custom keyword usage in Method-Based Custom Keyword, Area-Based Custom Controls, Basic Scrolling Area, Histogram, and Tetris examples.

Observer Pattern

The Observer Design Pattern (a.k.a. Observer Pattern) is fundamental to building GUIs (Graphical User Interfaces) following the MVC (Model View Controller) Architectural Pattern or any of its variations like MVP (Model View Presenter). In the original Smalltalk-MVC, the View observes the Model for changes and updates itself accordingly.

MVC - Model View Controller

Glimmer DSL for LibUI supports the Observer Design Pattern via the observe(model, attribute_or_key=nil) keyword, which can observe Object models with attributes, Hashes with keys, and Arrays. It automatically enhances objects as needed to support automatically notifying observers of changes via observable#notify_observers(attribute_or_key = nil) method:

  • Object becomes Glimmer::DataBinding::ObservableModel, which supports observing specified Object model attributes.
  • Hash becomes Glimmer::DataBinding::ObservableHash, which supports observing all Hash keys or a specific Hash key
  • Array becomes Glimmer::DataBinding::ObservableArray, which supports observing Array changes like those done with push, <<, delete, and map! methods (all mutation methods).

Example:

  observe(person, :name) do |new_name|
    @name_label.text = new_name
  end

That observes a person's name attribute for changes and updates the name label text property accordingly.

Learn about Glimmer's Observer Pattern capabilities and options in more detail at the Glimmer project page.

See examples of the observe keyword at Color The Circles, Method-Based Custom Keyword, Snake, and Tetris.

Data-Binding

Glimmer DSL for LibUI supports both bidirectional (two-way) data-binding and unidirectional (one-way) data-binding.

Data-binding enables writing very expressive, terse, and declarative code to synchronize View properties with Model attributes without writing many lines or pages of imperative code doing the same thing, increasing productivity immensely.

Data-binding automatically takes advantage of the Observer Pattern behind the scenes and is very well suited to declaring View property data sources piecemeal. On the other hand, explicit use of the Observer Pattern is sometimes more suitable when needing to make multiple View updates upon a single Model attribute change.

Data-binding supports utilizing the MVP (Model View Presenter) flavor of MVC by observing both the View and a Presenter for changes and updating the opposite side upon encountering them. This enables writing more decoupled cleaner code that keeps View code and Model code disentangled and highly maintainable. For example, check out the Snake game presenters for Grid and Cell, which act as proxies for the actual Snake game models Snake and Apple, mediating synchronization of data between them and the Snake View GUI.

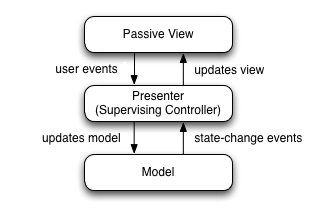

MVP

Bidirectional (Two-Way) Data-Binding

Glimmer DSL for LibUI supports bidirectional (two-way) data-binding of the following controls/properties via the <=> operator (indicating data is moving in both directions between View and Model):

  • checkbox: checked
  • check_menu_item: checked
  • color_button: color
  • combobox: selected, selected_item
  • date_picker: time
  • date_time_picker: time
  • editable_combobox: text
  • entry: text
  • font_button: font
  • multiline_entry: text
  • non_wrapping_multiline_entry: text
  • radio_buttons: selected
  • radio_menu_item: checked
  • search_entry: text
  • slider: value
  • spinbox: value
  • table: cell_rows (explicit data-binding by using <=> and implicit data-binding by assigning value directly)
  • time_picker: time

Example of bidirectional data-binding:

entry {
  text <=> [contract, :legal_text]
}

That is data-binding a contract's legal text to an entry text property.

Another example of bidirectional data-binding with an option:

entry {
  text <=> [self, :entered_text, after_write: ->(text) {puts text}]
}

That is data-binding entered_text attribute on self to entry text property and printing text after write to the model.

Table Data-Binding

One note about table cell_rows data-binding is that it works with either:

  • Raw data Array (rows) of Arrays (column cells)
  • Model Array (rows) of objects having attributes (column cells) matching the underscored names of table columns by convention. Model attribute names can be overridden when needed by passing an Array enumerating all mapped model attributes in the order of table columns or alternatively a Hash mapping only the column names that have model attribute names different from their table column underscored version.

Example of table implicit data-binding of cell_rows to raw data Array of Arrays (you may copy/paste in girb):

require 'glimmer-dsl-libui'

include Glimmer

data = [
  ['Lisa Sky', 'lisa@sky.com', '720-523-4329', 'Denver', 'CO'],
  ['Jordan Biggins', 'jordan@biggins.com', '617-528-5399', 'Boston', 'MA'],
  ['Mary Glass', 'mary@glass.com', '847-589-8788', 'Elk Grove Village', 'IL'],
  ['Darren McGrath', 'darren@mcgrath.com', '206-539-9283', 'Seattle', 'WA'],
  ['Melody Hanheimer', 'melody@hanheimer.com', '213-493-8274', 'Los Angeles', 'CA'],
]

window('Contacts', 600, 600) {
  table {
    text_column('Name')
    text_column('Email')
    text_column('Phone')
    text_column('City')
    text_column('State')

    cell_rows data
  }
}.show

Example of table explicit data-binding of cell_rows to Model Array (you may copy/paste in girb):

require 'glimmer-dsl-libui'

class SomeTable
  Contact = Struct.new(:name, :email, :phone, :city, :state)

  include Glimmer

  attr_accessor :contacts

  def initialize
    @contacts = [
      Contact.new('Lisa Sky', 'lisa@sky.com', '720-523-4329', 'Denver', 'CO'),
      Contact.new('Jordan Biggins', 'jordan@biggins.com', '617-528-5399', 'Boston', 'MA'),
      Contact.new('Mary Glass', 'mary@glass.com', '847-589-8788', 'Elk Grove Village', 'IL'),
      Contact.new('Darren McGrath', 'darren@mcgrath.com', '206-539-9283', 'Seattle', 'WA'),
      Contact.new('Melody Hanheimer', 'melody@hanheimer.com', '213-493-8274', 'Los Angeles', 'CA'),
    ]
  end

  def launch
    window('Contacts', 600, 200) {
      table {
        text_column('Name')
        text_column('Email')
        text_column('Phone')
        text_column('City')
        text_column('State')

        cell_rows <=> [self, :contacts] # explicit data-binding to self.contacts Model Array, auto-inferring model attribute names from underscored table column names by convention
      }
    }.show
  end
end

SomeTable.new.launch

Example of table explicit data-binding of cell_rows to Model Array with column_attributes Hash mapping for custom column names (you may copy/paste in girb):

require 'glimmer-dsl-libui'

class SomeTable
  Contact = Struct.new(:name, :email, :phone, :city, :state)

  include Glimmer

  attr_accessor :contacts

  def initialize
    @contacts = [
      Contact.new('Lisa Sky', 'lisa@sky.com', '720-523-4329', 'Denver', 'CO'),
      Contact.new('Jordan Biggins', 'jordan@biggins.com', '617-528-5399', 'Boston', 'MA'),
      Contact.new('Mary Glass', 'mary@glass.com', '847-589-8788', 'Elk Grove Village', 'IL'),
      Contact.new('Darren McGrath', 'darren@mcgrath.com', '206-539-9283', 'Seattle', 'WA'),
      Contact.new('Melody Hanheimer', 'melody@hanheimer.com', '213-493-8274', 'Los Angeles', 'CA'),
    ]
  end

  def launch
    window('Contacts', 600, 200) {
      table {
        text_column('Name')
        text_column('Email')
        text_column('Phone')
        text_column('City/Town')
        text_column('State/Province')

        cell_rows <=> [self, :contacts, column_attributes: {'City/Town' => :city, 'State/Province' => :state}]
      }
    }.show
  end
end

SomeTable.new.launch

Example of table explicit data-binding of cell_rows to Model Array with complete column_attributes Array mapping (you may copy/paste in girb):

require 'glimmer-dsl-libui'

class SomeTable
  Contact = Struct.new(:name, :email, :phone, :city, :state)

  include Glimmer

  attr_accessor :contacts

  def initialize
    @contacts = [
      Contact.new('Lisa Sky', 'lisa@sky.com', '720-523-4329', 'Denver', 'CO'),
      Contact.new('Jordan Biggins', 'jordan@biggins.com', '617-528-5399', 'Boston', 'MA'),
      Contact.new('Mary Glass', 'mary@glass.com', '847-589-8788', 'Elk Grove Village', 'IL'),
      Contact.new('Darren McGrath', 'darren@mcgrath.com', '206-539-9283', 'Seattle', 'WA'),
      Contact.new('Melody Hanheimer', 'melody@hanheimer.com', '213-493-8274', 'Los Angeles', 'CA'),
    ]
  end

  def launch
    window('Contacts', 600, 200) {
      table {
        text_column('Full Name')
        text_column('Email Address')
        text_column('Phone Number')
        text_column('City or Town')
        text_column('State or Province')

        cell_rows <=> [self, :contacts, column_attributes: [:name, :email, :phone, :city, :state]]
      }
    }.show
  end
end

SomeTable.new.launch

Unidirectional (One-Way) Data-Binding

Glimmer DSL for LibUI supports unidirectional (one-way) data-binding of any control/shape/attributed-string property via the <= operator (indicating data is moving from the right side, which is the Model, to the left side, which is the GUI View object).

Example of unidirectional data-binding:

square(0, 0, CELL_SIZE) {
  fill <= [@grid.cells[row][column], :color]
}

That is data-binding a grid cell color to a square shape's fill property. That means if the color attribute of the grid cell is updated, the fill property of the square shape is automatically updated accordingly.

Another Example of unidirectional data-binding with an option:

window {
  title <= [@game, :score, on_read: -> (score) {"Glimmer Snake (Score: #{@game.score})"}]
}

That is data-binding the window title property to the score attribute of a @game, but converting on read from the Model to a String.

Data-Binding API

To summarize the data-binding API:

  • view_property <=> [model, attribute, *read_or_write_options]: Bidirectional (two-way) data-binding to Model attribute accessor
  • view_property <= [model, attribute, *read_only_options]: Unidirectional (one-way) data-binding to Model attribute reader

This is also known as the Glimmer Shine syntax for data-binding, a Glimmer-only unique innovation that takes advantage of Ruby's highly expressive syntax and malleable DSL support.

Data-bound model attribute can be:

  • Direct: Symbol representing attribute reader/writer (e.g. [person, :name])
  • Nested: String representing nested attribute path (e.g. [company, 'address.street']). That results in "nested data-binding"
  • Indexed: String containing array attribute index (e.g. [customer, 'addresses[0].street']). That results in "indexed data-binding"
  • Keyed: String containing hash attribute key (e.g. [customer, 'addresses[:main].street']). That results in "keyed data-binding"

Data-binding options include:

  • before_read {|value| ...}: performs an operation before reading data from Model to update View.
  • on_read {|value| ...}: converts value read from Model to update the View.
  • after_read {|converted_value| ...}: performs an operation after read from Model to update View.
  • before_write {|value| ...}: performs an operation before writing data to Model from View.
  • on_write {|value| ...}: converts value read from View to update the Model.
  • after_write {|converted_value| ...}: performs an operation after writing to Model from View.
  • computed_by attribute or computed_by [attribute1, attribute2, ...]: indicates model attribute is computed from specified attribute(s), thus updated when they are updated (see in Login example version 2). That is known as "computed data-binding".

Note that with both on_read and on_write converters, you could pass a Symbol representing the name of a method on the value object to invoke.

Example:

entry {
  text <=> [product, :price, on_read: :to_s, on_write: :to_i]
}

Learn more from data-binding usage in Login (4 data-binding versions), Basic Entry, Form, Form Table (5 data-binding versions), Method-Based Custom Keyword, Snake and Tic Tac Toe examples.

Data-Binding Gotchas

  • Never data-bind a control property to an attribute on the same view object with the same exact name (e.g. binding entry text property to self text attribute) as it would conflict with it. Instead, data-bind view property to an attribute with a different name on the view object or with the same name, but on a presenter or model object (e.g. data-bind entry text to self legal_text attribute or to contract model text attribute)
  • Data-binding a property utilizes the control's listener associated with the property (e.g. on_changed for entry text), so although you can add another listener if you want (Glimmer DSL for LibUI will happily add your listener to the list of listeners that will get notified by a certain event), sometimes it is recommended that you add an after_read: ->(val) {} or after_write: ->(val) {} block instead to perform something after data-binding reads from or writes to the Model attribute.
  • Data-binding a View control to another View control directly is not a good practice as it causes tight-coupling. Instead, data-bind both View controls to the same Presenter/Model attribute, and that keeps them in sync while keeping the code decoupled.

API Gotchas

  • There is no proper way to destroy grid children due to libui not offering any API for deleting them from grid (no grid_delete similar to box_delete for horizontal_box and vertical_box).
  • table checkbox_column checkbox editing only works on Linux and Windows (not Mac) due to a current limitation in libui.
  • table checkbox_text_column checkbox editing only works on Linux (not Mac or Windows) due to a current limitation in libui.
  • text align property seems not to work on the Mac (libui has an issue about it)
  • text string background does not work on Windows due to an issue in libui.
  • table progress_bar column on Windows cannot be updated with a positive value if it started initially with -1 (it ignores update to avoid crashing due to an issue in libui on Windows.
  • radio_buttons on Linux has an issue where it always selects the first item even if you did not set its selected value or set it to -1 (meaning unselected). It works correctly on Mac and Windows.
  • It seems that libui does not support nesting multiple area controls under a grid as only the first one shows up in that scenario. To workaround that limitation, use a vertical_box with nested horizontal_boxs instead to include multiple areas in a GUI.
  • As per the code of examples/basic_transform.rb, Windows requires different ordering of transforms than Mac and Linux.
  • scrolling_area#scroll_to does not seem to work on Windows and Linux, but works fine on Mac

Original API

Here are all the lower-level LibUI API methods utilized by Glimmer DSL for LibUI: alloc_control, append_features, area_begin_user_window_move, area_begin_user_window_resize, area_queue_redraw_all, area_scroll_to, area_set_size, attribute_color, attribute_family, attribute_features, attribute_get_type, attribute_italic, attribute_size, attribute_stretch, attribute_underline, attribute_underline_color, attribute_weight, attributed_string_append_unattributed, attributed_string_byte_index_to_grapheme, attributed_string_delete, attributed_string_for_each_attribute, attributed_string_grapheme_to_byte_index, attributed_string_insert_at_unattributed, attributed_string_len, attributed_string_num_graphemes, attributed_string_set_attribute, attributed_string_string, box_append, box_delete, box_padded, box_set_padded, button_on_clicked, button_set_text, button_text, checkbox_checked, checkbox_on_toggled, checkbox_set_checked, checkbox_set_text, checkbox_text, color_button_color, color_button_on_changed, color_button_set_color, combobox_append, combobox_on_selected, combobox_selected, combobox_set_selected, control_destroy, control_disable, control_enable, control_enabled, control_enabled_to_user, control_handle, control_hide, control_parent, control_set_parent, control_show, control_toplevel, control_verify_set_parent, control_visible, date_time_picker_on_changed, date_time_picker_set_time, date_time_picker_time, draw_clip, draw_fill, draw_free_path, draw_free_text_layout, draw_matrix_invert, draw_matrix_invertible, draw_matrix_multiply, draw_matrix_rotate, draw_matrix_scale, draw_matrix_set_identity, draw_matrix_skew, draw_matrix_transform_point, draw_matrix_transform_size, draw_matrix_translate, draw_new_path, draw_new_text_layout, draw_path_add_rectangle, draw_path_arc_to, draw_path_bezier_to, draw_path_close_figure, draw_path_end, draw_path_line_to, draw_path_new_figure, draw_path_new_figure_with_arc, draw_restore, draw_save, draw_stroke, draw_text, draw_text_layout_extents, draw_transform, editable_combobox_append, editable_combobox_on_changed, editable_combobox_set_text, editable_combobox_text, entry_on_changed, entry_read_only, entry_set_read_only, entry_set_text, entry_text, ffi_lib, ffi_lib=, font_button_font, font_button_on_changed, form_append, form_delete, form_padded, form_set_padded, free_attribute, free_attributed_string, free_control, free_font_button_font, free_image, free_init_error, free_open_type_features, free_table_model, free_table_value, free_text, grid_append, grid_insert_at, grid_padded, grid_set_padded, group_margined, group_set_child, group_set_margined, group_set_title, group_title, image_append, init, label_set_text, label_text, main, main_step, main_steps, menu_append_about_item, menu_append_check_item, menu_append_item, menu_append_preferences_item, menu_append_quit_item, menu_append_separator, menu_item_checked, menu_item_disable, menu_item_enable, menu_item_on_clicked, menu_item_set_checked, msg_box, msg_box_error, multiline_entry_append, multiline_entry_on_changed, multiline_entry_read_only, multiline_entry_set_read_only, multiline_entry_set_text, multiline_entry_text, new_area, new_attributed_string, new_background_attribute, new_button, new_checkbox, new_color_attribute, new_color_button, new_combobox, new_date_picker, new_date_time_picker, new_editable_combobox, new_entry, new_family_attribute, new_features_attribute, new_font_button, new_form, new_grid, new_group, new_horizontal_box, new_horizontal_separator, new_image, new_italic_attribute, new_label, new_menu, new_multiline_entry, new_non_wrapping_multiline_entry, new_open_type_features, new_password_entry, new_progress_bar, new_radio_buttons, new_scrolling_area, new_search_entry, new_size_attribute, new_slider, new_spinbox, new_stretch_attribute, new_tab, new_table, new_table_model, new_table_value_color, new_table_value_image, new_table_value_int, new_table_value_string, new_time_picker, new_underline_attribute, new_underline_color_attribute, new_vertical_box, new_vertical_separator, new_weight_attribute, new_window, on_should_quit, open_file, open_type_features_add, open_type_features_clone, open_type_features_for_each, open_type_features_get, open_type_features_remove, progress_bar_set_value, progress_bar_value, queue_main, quit, radio_buttons_append, radio_buttons_on_selected, radio_buttons_selected, radio_buttons_set_selected, save_file, slider_on_changed, slider_set_value, slider_value, spinbox_on_changed, spinbox_set_value, spinbox_value, tab_append, tab_delete, tab_insert_at, tab_margined, tab_num_pages, tab_set_margined, table_append_button_column, table_append_checkbox_column, table_append_checkbox_text_column, table_append_image_column, table_append_image_text_column, table_append_progress_bar_column, table_append_text_column, table_model_row_changed, table_model_row_deleted, table_model_row_inserted, table_value_color, table_value_get_type, table_value_image, table_value_int, table_value_string, timer, uninit, user_bug_cannot_set_parent_on_toplevel, window_borderless, window_content_size, window_fullscreen, window_margined, window_on_closing, window_on_content_size_changed, window_set_borderless, window_set_child, window_set_content_size, window_set_fullscreen, window_set_margined, window_set_title, window_title

To learn more about the LibUI API exposed through Glimmer DSL for LibUI:

Packaging

I am documenting options for packaging, which I have not tried myself, but figured they would still be useful to add to the README.md until I can expand further effort into supporting packaging.

For Windows, the LibUI project recommends OCRA (One-Click Ruby Application), which builds Windows executables from Ruby source.

For Mac, consider Platypus (builds a native Mac app from a Ruby script)

For Linux, simply package your app as a Ruby Gem and build rpm package from Ruby Gem or build deb package from Ruby Gem.

Also, there is a promising project called ruby-packer that supports all platforms.

Glimmer Style Guide

1 - Control arguments are always wrapped by parentheses.

Example:

label('Name')

2 - Control blocks are always declared with curly braces to clearly visualize hierarchical view code and separate from logic code.

Example:

  group('Basic Controls') {
    vertical_box {
      button('Button') {
      }
    }
  }

3 - Control property declarations always have arguments that are not wrapped inside parentheses and typically do not take a block.

Example:

  stretchy false
  value 42

4 - Control listeners are always declared starting with on_ prefix and affixing listener event method name afterwards in underscored lowercase form. Their multi-line blocks have a do; end style.

Example:

  button('Click') {
    on_clicked do
      msg_box('Information', 'You clicked the button')
    end
  }

5 - Iterator multi-line blocks always have do; end style to clearly separate logic code from view code.

Example:

  @field_hash.keys.each do |field|
    label(field) {
      stretchy false
    }

    entry {
      on_changed do |control|
        @field_hash[field] = control.text
      end
    }
  end

6 - In a widget's content block, attributes are declared first, with layout management attributes on top (e.g. stretchy false); an empty line separates attributes from nested widgets and listeners following afterwards.

Example:

  group('Numbers') {
    stretchy false

    vertical_box {
      spinbox(0, 100) {
        stretchy false
        value 42

        on_changed do |s|
          puts "New Spinbox value: #{s.value}"
          $stdout.flush # for Windows
        end
      }
    }
  }

7 - Unlike attributes, nested widgets with a content block and listeners are always separated from each other by an empty line to make readability easier except where it helps to group two widgets together (e.g. label and described entry).

Example:

  area {
    path { # needs an empty line afterwards
      square(0, 0, 100) # does not have a content block, so no empty line is needed
      square(100, 100, 400) # does not have a content block, so no empty line is needed

      fill r: 102, g: 102, b: 204
    }

    path { # needs an empty line afterwards
      rectangle(0, 100, 100, 400) # does not have a content block, so no empty line is needed
      rectangle(100, 0, 400, 100) # does not have a content block, so no empty line is needed

      fill x0: 10, y0: 10, x1: 350, y1: 350, stops: [{pos: 0.25, r: 204, g: 102, b: 204}, {pos: 0.75, r: 102, g: 102, b: 204}]
    }

    polygon(100, 100, 100, 400, 400, 100, 400, 400) { # needs an empty line afterwards
      fill r: 202, g: 102, b: 104, a: 0.5 # attributes do not need an empty line separator
      stroke r: 0, g: 0, b: 0 # attributes do not need an empty line separator
    }

    on_mouse_up do |area_mouse_event| # needs an empty line afterwards
      puts 'mouse up'
    end

    on_key_up do |area_key_event| # needs an empty line afterwards
      puts 'key up'
    end
  }

Examples

The following basic and advanced examples include reimplementions of the examples in the LibUI project utilizing the Glimmer GUI DSL (with and without data-binding) as well as brand new examples.

To browse all examples, simply launch the Meta-Example, which lists all examples and displays each example's code when selected. It also enables code editing to facilitate experimentation and learning.

examples/meta_example.rb

Run with this command from the root of the project if you cloned the project:

ruby -r './lib/glimmer-dsl-libui' examples/meta_example.rb

Run with this command if you installed the Ruby gem:

ruby -r glimmer-dsl-libui -e "require 'examples/meta_example'"
Mac Windows Linux
glimmer-dsl-libui-mac-meta-example.png glimmer-dsl-libui-windows-meta-example.png glimmer-dsl-libui-linux-meta-example.png

New Glimmer DSL for LibUI Version:

require 'glimmer-dsl-libui'
require 'facets'
require 'fileutils'

class MetaExample
  include Glimmer

  ADDITIONAL_BASIC_EXAMPLES = ['Color Button', 'Font Button', 'Form', 'Date Time Picker', 'Simple Notepad']

  attr_accessor :code_text

  def initialize
    @selected_example_index = examples_with_versions.index(basic_examples_with_versions.first)
    @code_text = File.read(file_path_for(selected_example))
  end

  def examples
    if @examples.nil?
      example_files = Dir.glob(File.join(File.expand_path('.', __dir__), '*.rb'))
      example_file_names = example_files.map { |f| File.basename(f, '.rb') }
      example_file_names = example_file_names.reject { |f| f == 'meta_example' || f.match(/\d$/) }
      @examples = example_file_names.map { |f| f.underscore.titlecase }
    end
    @examples
  end

  def examples_with_versions
    examples.map do |example|
      version_count_for(example) > 1 ? "#{example} (#{version_count_for(example)} versions)" : example
    end
  end

  def basic_examples_with_versions
    examples_with_versions.select {|example| example.start_with?('Basic') || ADDITIONAL_BASIC_EXAMPLES.include?(example) }
  end

  def advanced_examples_with_versions
    examples_with_versions - basic_examples_with_versions
  end

  def file_path_for(example)
    File.join(File.expand_path('.', __dir__), "#{example.underscore}.rb")
  end

  def version_count_for(example)
    Dir.glob(File.join(File.expand_path('.', __dir__), "#{example.underscore}*.rb")).select {|file| file.match(/#{example.underscore}\d\.rb$/)}.count + 1
  end

  def glimmer_dsl_libui_file
    File.expand_path('../lib/glimmer-dsl-libui', __dir__)
  end

  def selected_example
    examples[@selected_example_index]
  end

  def run_example(example)
    Thread.new do
      command = "#{RbConfig.ruby} -r #{glimmer_dsl_libui_file} #{example} 2>&1"
      result = ''
      IO.popen(command) do |f|
        sleep(0.0001) # yield to main thread
        f.each_line do |line|
          result << line
          puts line
          $stdout.flush # for Windows
          sleep(0.0001) # yield to main thread
        end
      end
      Glimmer::LibUI.queue_main { msg_box('Error Running Example', result) } if result.downcase.include?('error')
    end
  end

  def launch
    window('Meta-Example', 700, 500) {
      margined true

      horizontal_box {
        vertical_box {
          stretchy false

          tab {
            stretchy false

            tab_item('Basic') {
              vertical_box {
                @basic_example_radio_buttons = radio_buttons {
                  stretchy false
                  items basic_examples_with_versions
                  selected basic_examples_with_versions.index(examples_with_versions[@selected_example_index])

                  on_selected do
                    @selected_example_index = examples_with_versions.index(basic_examples_with_versions[@basic_example_radio_buttons.selected])
                    example = selected_example
                    self.code_text = File.read(file_path_for(example))
                    @version_spinbox.value = 1
                  end
                }

                label # filler
                label # filler
              }
            }

            tab_item('Advanced') {
              vertical_box {
                @advanced_example_radio_buttons = radio_buttons {
                  stretchy false
                  items advanced_examples_with_versions

                  on_selected do
                    @selected_example_index = examples_with_versions.index(advanced_examples_with_versions[@advanced_example_radio_buttons.selected])
                    example = selected_example
                    self.code_text = File.read(file_path_for(example))
                    @version_spinbox.value = 1
                  end
                }

                label # filler
                label # filler
              }
            }
          }

          horizontal_box {
            label('Version') {
              stretchy false
            }

            @version_spinbox = spinbox(1, 100) {
              value 1

              on_changed do
                example = selected_example
                if @version_spinbox.value > version_count_for(example)
                  @version_spinbox.value -= 1
                else
                  version_number = @version_spinbox.value == 1 ? '' : @version_spinbox.value
                  example = "#{selected_example}#{version_number}"
                  self.code_text = File.read(file_path_for(example))
                end
              end
            }
          }

          horizontal_box {
            stretchy false

            button('Launch') {
              on_clicked do
                begin
                  parent_dir = File.join(Dir.home, '.glimmer-dsl-libui', 'examples')
                  FileUtils.mkdir_p(parent_dir)
                  example_file = File.join(parent_dir, "#{selected_example.underscore}.rb")
                  File.write(example_file, code_text)
                  example_supporting_directory = File.expand_path(selected_example.underscore, __dir__)
                  FileUtils.cp_r(example_supporting_directory, parent_dir) if Dir.exist?(example_supporting_directory)
                  FileUtils.cp_r(File.expand_path('../icons', __dir__), File.dirname(parent_dir))
                  FileUtils.cp_r(File.expand_path('../sounds', __dir__), File.dirname(parent_dir))
                  run_example(example_file)
                rescue => e
                  puts e.full_message
                  puts 'Unable to write code changes! Running original example...'
                  run_example(file_path_for(selected_example))
                end
              end
            }
            button('Reset') {
              on_clicked do
                self.code_text = File.read(file_path_for(selected_example))
              end
            }
          }
        }

        @code_entry = non_wrapping_multiline_entry {
          text <=> [self, :code_text]
        }
      }
    }.show
  end
end

MetaExample.new.launch

Basic Examples

docs/examples/GLIMMER-DSL-LIBUI-BASIC-EXAMPLES.md

Mac Windows Linux
glimmer-dsl-libui-mac-basic-window.png glimmer-dsl-libui-windows-basic-window.png glimmer-dsl-libui-linux-basic-window.png

Advanced Examples

docs/examples/GLIMMER-DSL-LIBUI-ADVANCED-EXAMPLES.md

Mac Windows Linux
glimmer-dsl-libui-mac-form-table.png glimmer-dsl-libui-windows-form-table.png glimmer-dsl-libui-linux-form-table.png

Applications

Here are some applications built with Glimmer DSL for LibUI

Manga2PDF

Download and merge manga images into a single pdf file.

https://github.com/PinGunter/manga2pdf

manga2pdf screenshot

Befunge98 GUI

Ruby implementation of the Befunge-98 programmming language.

https://github.com/AndyObtiva/befunge98/tree/gui

befunge98 gui screenshot

i3off Gtk Ruby

https://github.com/iraamaro/i3off-gtk-ruby

Chess

https://github.com/mikeweber/chess

RubyCrumbler

NLP (Natural Language Processing) App

https://github.com/joh-ga/RubyCrumbler

mac_31

Rubio-Radio

https://github.com/kojix2/rubio-radio

rubio radio screenshot

PMV Calc

https://github.com/bzanchet/pmv-calc

PMV Calc

Suika Box

https://github.com/kojix2/suikabox

suika box screenshot

HTS Grid

https://github.com/kojix2/htsgrid

hts grid screenshot

Process

Glimmer Process

Resources

Help

Issues

If you encounter issues that are not reported, discover missing features that are not mentioned in TODO.md, or think up better ways to use libui than what is possible with Glimmer DSL for LibUI, you may submit an issue or pull request on GitHub. In the meantime, you may try older gem versions of Glimmer DSL for LibUI till you find one that works.

Chat

If you need live help, try to Join the chat at https://gitter.im/AndyObtiva/glimmer

Planned Features and Feature Suggestions

These features have been planned or suggested. You might see them in a future version of Glimmer DSL for LibUI. You are welcome to contribute more feature suggestions.

TODO.md

Change Log

CHANGELOG.md

Contributing

If you would like to contribute to the project, please adhere to the Open-Source Etiquette to ensure the best results.

  • Check out the latest master to make sure the feature hasn't been implemented or the bug hasn't been fixed yet.
  • Check out the issue tracker to make sure someone already hasn't requested it and/or contributed it.
  • Fork the project.
  • Start a feature/bugfix branch.
  • Commit and push until you are happy with your contribution.
  • Make sure to add tests for it. This is important so I don't break it in a future version unintentionally.
  • Please try not to mess with the Rakefile, version, or history. If you want to have your own version, or is otherwise necessary, that is fine, but please isolate to its own commit so I can cherry-pick around it.

Note that the latest development sometimes takes place in the development branch (usually deleted once merged back to master).

Contributors

Click here to view contributor commits.

License

MIT

Copyright (c) 2021-2022 Andy Maleh

--

Built for Glimmer (DSL Framework).
