TurboStreamer

TurboStreamer gives you a simple DSL like jBuilder for generating JSON that streams directly to a String or IO object.

Jbuilder builds a Hash as it renders the template and once complete converts the Hash to JSON. TurboStreamer on the other hand writes directly to the output as it is rendering the template. Because of this some of the magic cannot be done and requires a little more verboseness.

Because no time is spent creating a hash caching is also fast. No time is spent marshaling and unmarshaling from the cache, instead the string is cached and directly inserted into the stream skipping any unmarshaling.

# app/views/message/show.json.streamer

json.object! do
  json.content format_content(@message.content)
  json.extract! @message, :created_at, :updated_at

  json.author do
    json.object! do
      json.name @message.creator.name.familiar
      json.email_address @message.creator.email_address_with_name
      json.url url_for(@message.creator, format: :json)
    end
  end

  if current_user.admin?
    json.visitors calculate_visitors(@message)
  end

  json.tags do
    json.array! do
      @message.tags.each { |tag| json.child! tag }
    end
  end

  json.comments @message.comments, :content, :created_at

  json.attachments @message.attachments do |attachment|
    json.object! do
      json.filename attachment.filename
      json.url url_for(attachment)
    end
  end
end

This will build the following structure:

{
  "content": "<p>This is <i>serious</i> monkey business</p>",
  "created_at": "2011-10-29T20:45:28-05:00",
  "updated_at": "2011-10-29T20:45:28-05:00",

  "author": {
    "name": "David H.",
    "email_address": "'David Heinemeier Hansson' <david@heinemeierhansson.com>",
    "url": "http://example.com/users/1-david.json"
  },

  "visitors": 15,

  "tags": ['public'],

  "comments": [
    { "content": "Hello everyone!", "created_at": "2011-10-29T20:45:28-05:00" },
    { "content": "To you my good sir!", "created_at": "2011-10-29T20:47:28-05:00" }
  ],

  "attachments": [
    { "filename": "forecast.xls", "url": "http://example.com/downloads/forecast.xls" },
    { "filename": "presentation.pdf", "url": "http://example.com/downloads/presentation.pdf" }
  ]
}

To define attribute and structure names dynamically, use the set! method:

json.object! do
  json.set! :author do
    json.object! do
      json.set! :name, 'David'
    end
  end
end

# => { "author": { "name": "David" } }

To merge existing hash or array to current context:

hash = { author: { name: "David" } }
json.post do
  json.title "Merge HOWTO"
  json.merge! hash
end

# => "post": { "title": "Merge HOWTO", "author": { "name": "David" } }

Top level arrays can be handled directly. Useful for index and other collection actions.

json.array! @comments do |comment|
  next if comment.marked_as_spam_by?(current_user)

  json.object! do
    json.body comment.body
    json.author do
      json.first_name comment.author.first_name
      json.last_name comment.author.last_name
    end
  end
end

# => [ { "body": "great post...", "author": { "first_name": "Joe", "last_name": "Bloe" }} ]

You can also extract attributes from array directly.

# @people = People.all

json.array! @people, :id, :name

# => [ { "id": 1, "name": "David" }, { "id": 2, "name": "Jamie" } ]

You can either use TurboStreamer stand-alone or directly as an ActionView template language. When required in Rails, you can create views ala show.json.streamer (the json is already yielded):

# Any helpers available to views are available to the builder
json.object! do
  json.content format_content(@message.content)
  json.extract! @message, :created_at, :updated_at

  json.author do
    json.object! do
      json.name @message.creator.name.familiar
      json.email_address @message.creator.email_address_with_name
      json.url url_for(@message.creator, format: :json)
    end
  end

  if current_user.admin?
    json.visitors calculate_visitors(@message)
  end
end

You can use partials as well. The following will render the file views/comments/_comments.json.streamer, and set a local variable comments with all this message's comments, which you can use inside the partial.

json.partial! 'comments/comments', locals: { comments: @message.comments }

It's also possible to render collections of partials:

json.array! @posts, partial: 'posts/post', as: :post

# or

json.partial! 'posts/post', collection: @posts, as: :post

# or

json.comments @post.comments, partial: 'comment/comment', as: :comment

The signature is partial!(name, locals: nil, **render_options): the partial name comes first, template locals go in locals:, and every other keyword is passed to Action View as a render option.

json.partial! 'posts/post', locals: { post: @post }  # a local named post
json.partial! 'posts/post', locale: :de              # picks _post.de.json.streamer
json.partial! 'posts/post', variants: :grid          # picks _post.json+grid.streamer
json.partial! 'posts/post', collection: @posts, as: :post

The one exception is handlers:, which is fixed to [:streamer].

A .json.streamer layout can wrap the template. Call json.yield! where the template's JSON should go:

# app/views/layouts/application.json.streamer
json.object! do
  json.meta do
    json.object! { json.version 1 }
  end
  json.key! :data
  json.yield!
end

# app/views/posts/index.json.streamer
json.array! @posts, :id, :title

# => { "meta": { "version": 1 }, "data": [ { "id": 1, "title": "..." } ] }

The layout and the template share one builder, so the template writes straight into the same stream at the point it is yielded — nothing is buffered into a string and spliced back in. This works whether or not the response is streamed with render stream: true; when it is, a large response still arrives in chunks.

json.yield! goes anywhere a value goes, including inside an array:

json.array! do
  json.child! { json.object! { json.first true } }
  json.child! { json.yield! }
end

A layout that only wraps is just the one call:

json.yield!

A layout may yield more than once, and one that never yields renders without the template — both as an ERB layout does. The difference is that ERB replays a buffered string, whereas each json.yield! renders the template again, so anything it does happens again too:

json.array! do
  json.child! { json.yield! }
  json.child! { json.yield! }   # the template is rendered a second time
end

yield is a Ruby keyword that returns a value, and the template's JSON is never a value here — it is written into the stream at the position the layout has reached. Placing it therefore has to go through the builder, and json.yield! matches the rest of the DSL, where the methods that write something end in !: object!, array!, child!, partial!, merge!, cache!. A bare yield in a .json.streamer layout raises LocalJumpError naming json.yield!.

Two differences worth knowing:

• The layout renders first, and json.yield! renders the template it wraps. An ERB layout is the other way around: the template is rendered up front and the layout concatenates the resulting string. Reversing it is what lets the template write into the layout's builder instead of being encoded to a string and spliced back in — which neither encoder can do into a keyed slot.
• There is one yield, and it has no name. content_for / provide have no analogue, and a layout cannot ask for content the template defines later. In ERB that works because the layout runs in a Fiber and suspends until the template provides the key; here the layout calls the template directly, so there is nothing to suspend. A JSON document's shape is positional, so one yield in one place is generally what you want.

ActionController::API does not include ActionView::Layouts, so a controller inheriting from it renders the template and silently skips the layout — no error, just a response missing whatever the layout wraps it in. Include the module to turn layouts back on:

module Api
  class BaseController < ActionController::API
    include ActionView::Layouts

    layout 'api'
  end
end

You can explicitly make TurboStreamer object return null if you want:

json.extract! @post, :id, :title, :content, :published_at
json.author do
  if @post.anonymous?
    json.null! # or json.nil!
  else
    json.object! do
      json.first_name @post.author_first_name
      json.last_name @post.author_last_name
    end
  end
end

Fragment caching is supported, it uses Rails.cache and works like caching in HTML templates:

json.object! do
  json.cache! ['v1', @person], expires_in: 10.minutes do
    json.extract! @person, :name, :age
  end
end

You can also conditionally cache a block by using cache_if! like this:

json.object! do
  json.cache_if! !admin?, ['v1', @person], expires_in: 10.minutes do
    json.extract! @person, :name, :age
  end
end

Caching works both over a key and its value, and under a key as that key's value:

# the whole pair, or several pairs, as one fragment
json.object! do
  json.cache! :key do
    json.value! 'Cache this.'
  end
end

# or just the value
json.object! do
  json.key do
    json.cache! :key do
      json.value! 'Cache this.'
    end
  end
end

The two cache different bytes. Over the key, the fragment is a sequence of pairs ("key":"Cache this.") and can cover several keys at once. Under the key, it is a bare value ("Cache this."), which is not tied to the key it was written for -- so the same fragment is reusable anywhere a value belongs, and is interchangeable between the encoders.

Keys can be auto formatted using key_format!, this can be used to convert keynames from the standard ruby_format to camelCase:

json.key_format! camelize: :lower
json.object! do
  json.first_name 'David'
end

# => { "firstName": "David" }

You can set this globally with the class method key_format (from inside your environment.rb for example):

TurboStreamer.key_format camelize: :lower

• You must open JSON object or array if you want an object or array.
• You can directly output a value with json.value! value, this will allow you to put a number, string, or other JSON value if you wish to not have an object or array.
• The call syntax has been removed (eg. json.(@person, :name, :age))
• Caching inside of a object must cache both the key and the value.

Currently TurboStreamer supports Wankel and Oj for JSON encoding.

By default TurboStreamer will look for Oj and Wankel and use the first available option.

You can also set the encoder when initializing:

TurboStreamer.encode(encoder: :oj)
# Or
TurboStreamer.encode(encoder: :wankel)

# You can also pass the class
TurboStreamer.encode(encoder: TurboStreamer::WankelEncoder)

# Or your own encoder
TurboStreamer.encode(encoder: MyEncoder)

If you need explicitly set the default:

TurboStreamer.set_default_encoder(:json, :oj)

You can also set default options to pass to the encoder if needed:

TurboStreamer.set_default_encoder(:json, :oj, buffer_size: 1_024)

You may also just set the default options for an encoder:

TurboStreamer.set_default_encoder_options(:oj, buffer_size: 2_048)

The idea was to also support MessagePack, hence requring the mime type when setting a default encoder.

Implementing MessagePack would require a bit of work as you would need a change in the protocol. We do not know how big an array or map/object will be when we start emitting it and MessagePack require we know it. It seems like a relatively small change, instead of a marker followed by number of lements there would be a start marker followed by the elements and then an end marker.

All backends must have the following functions:

• key(string) Output a map key
• value(value) Output a value
• map_open Open a object/map
• map_close Close a object/map
• array_open Open an Array
• array_close Close an Array
• flush Flush any buffers
• inject(string) Inject a (usually cached) string into the output; instering any delimiters as needed.
• capture(&block) Capture the output of the block (w/o any delimiters)

Gnuplot and YAJL are required to run the benchmarks; YAJL is needed by wankel, one of the encoders under test. To install:

• brew install gnuplot yajl (MacOS)

The benchmark gems live in an optional Bundler group, so install them first:

bundle config set with performance
bundle install

To run the benchmarks: bundle exec rake performance (from the repository root). It produces four reports — two document shapes, each run with fragment caching off and on — and prints a table of each implementation's median i/s. The reports below were generated on macOS 26.5.1, Apple M5 Pro; the i/s figures quoted in the text are medians of three runs.

A third suite, vendored from alba, compares TurboStreamer against sixteen other serializers rather than measuring document shapes. It carries its own bundle, so it runs separately with bundle exec rake performance:alba — see performance/alba/README.md.

Both suites render live values before and after a cached fragment. A response that is cacheable end to end would be cached at the controller rather than rendered at all, so the case worth measuring is a cached fragment with live data around it. With caching off, nothing is reused and the comparison is of the builders themselves.

Caching is toggled with the PERFORM_CACHING environment variable. It has to be set on ActionController::Base and on the render context together — RABL consults the former through Rabl::Helpers#template_cache_configured?, while TurboStreamer, props_template and jbuilder ask the controller they are rendered with. Setting only one leaves the other library's caching silently disabled.

props_template additionally requires the render context to define cache_fragment_name, which it calls unguarded where TurboStreamer and jbuilder fall back to the bare key. The suites give it that method on a subclass rather than on the shared context, so the other implementations keep the code path they had before it was added.

All five implementations produce the same document — byte-identical output (the two Oj-backed builders append a trailing newline), the same subtree cached as the fragment, and the same live values rendered outside it. Each library caches under its own key and namespace, so none can read another's entry. RABL runs with cache_sources enabled so no implementation touches the filesystem inside the measured loop.

Reading the numbers: these are microbenchmarks of the render layer. Every value is precomputed before the measured loop, so builder overhead is nearly the whole cost of an iteration. In an application, attribute access, type casting and the rest of the request add the same absolute cost to every library, which narrows every relative gap — most of all uncached, where RABL's lead comes from handing a finished Ruby Hash to Oj's single C-level pass rather than from a faster builder; among the builder DSLs, TurboStreamer's Oj encoder and props_template are effectively tied uncached and trade the lead by document size — TurboStreamer ahead on the 22KB document (1.12x), props_template on the 5MB one (1.04x).

With a cached fragment the field splits by what each library caches, not by how fast it builds. TurboStreamer and props_template both cache serialized bytes and splice them into the output, so a hit costs a copy; RABL and jbuilder cache the data structure and deserialize and re-serialize it on every hit. That is worth an order of magnitude or more, and it puts props_template — the other direct-to-encoder builder — in the same band as TurboStreamer rather than with the other two. TurboStreamer is still the fastest cached in both suites — its Oj encoder leads props_template by 1.18x on the 22KB document and 2.64x on the 5MB one. The GC panels are normalized per iteration, not per second — implementations complete vastly different amounts of work in the same five seconds, and a per-second axis would make the fastest one look the most wasteful. The iterations axis is logarithmic for the same reason. RSS is a process-level number and should be read against the iterations panel.

An article with an author, 100 references and 100 comments. The article is the cached fragment; generated_at, request_id and total_comments stay live.

The document comes from rolftimmermans' jbuilder#54 (2012).

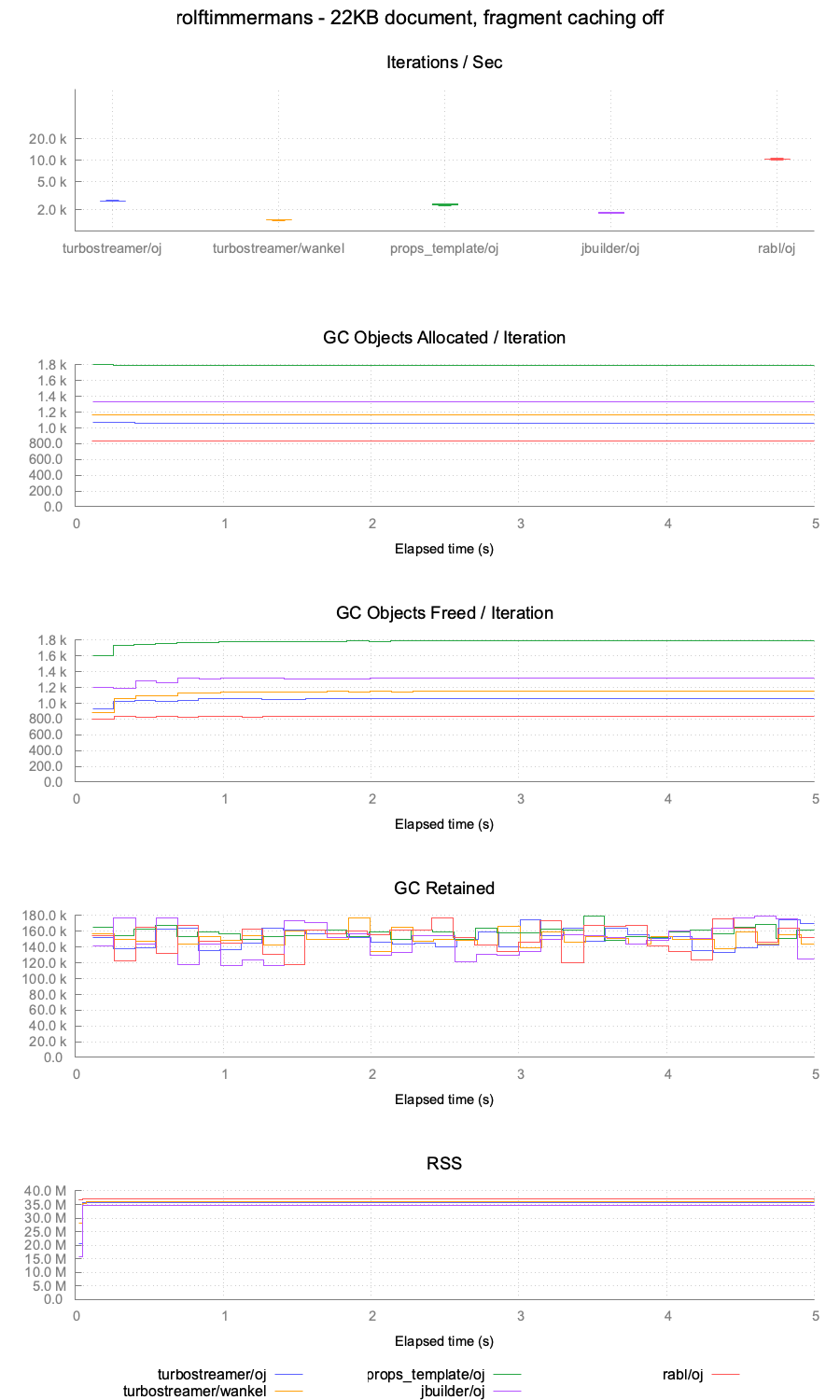

Rebuilt every iteration, RABL leads by roughly 3.9x (10,338 i/s against TurboStreamer's 2,664): its template evaluates to a Ruby Hash that Oj serializes in one C-level pass, where the builder DSLs walk the same structure through roughly 800 Ruby method calls. At this size there is nothing to stream. The three builder DSLs land close together — TurboStreamer 2,664, props_template 2,378, jbuilder 1,794.

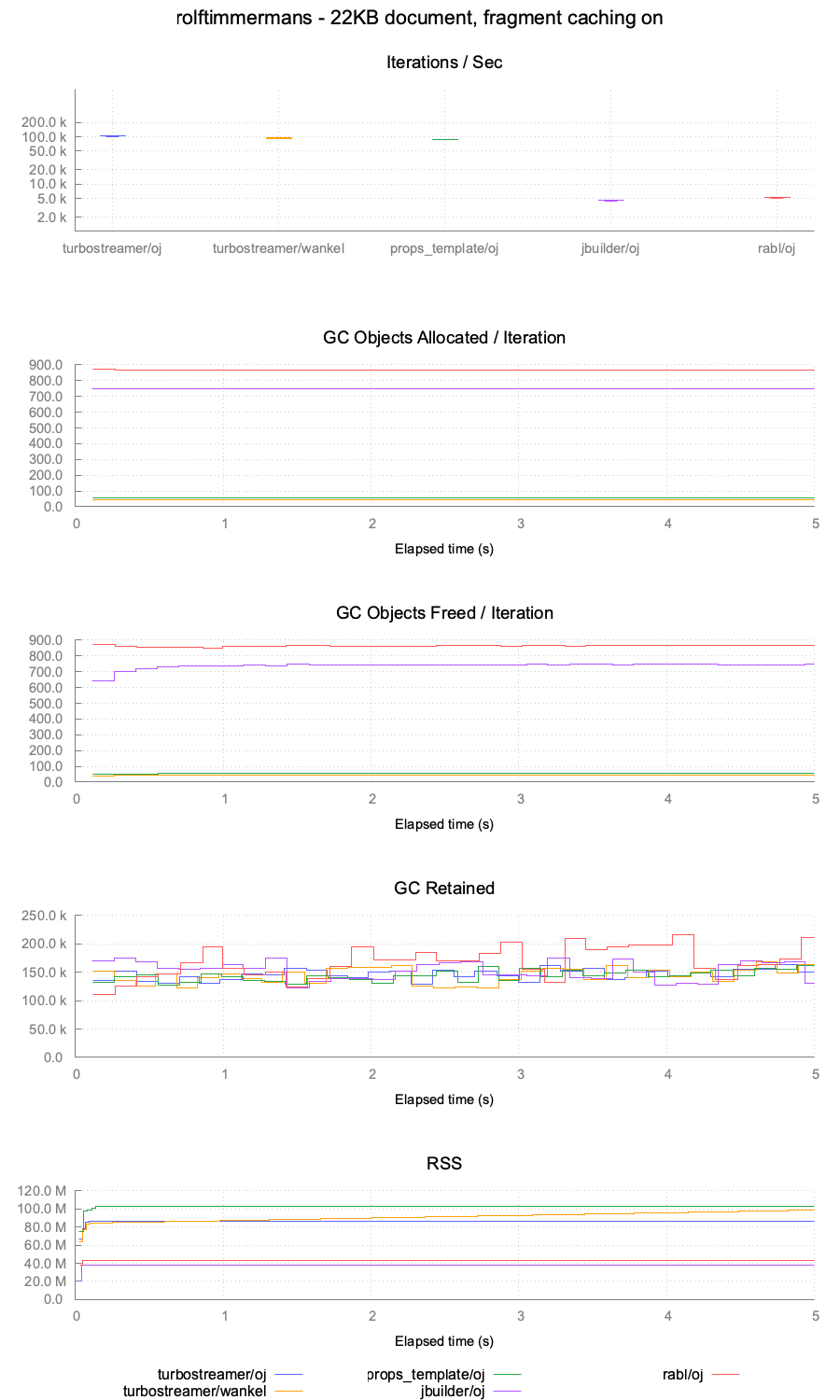

With the fragment cached the ranking inverts and the field splits in two, along the line of what each library caches. TurboStreamer (99,855 i/s) and props_template (84,804) cache the fragment's serialized JSON and splice those bytes into the output, so a hit costs a copy and no serialization. RABL (5,070) and jbuilder (4,518) cache the data structure — RABL's key is rabl/article_fragment//hash — so a hit deserializes the cached objects and re-serializes them into the response every time. That is a seventeen- to twenty-two-fold difference between the two groups, against 1.18x between the two byte-cachers.

101 items each holding 101 sub-items, well past the size of a realistic response, included for the large-payload and memory behaviour.

The document comes from dirk, in a comment on jbuilder#289 (2015) — a thread proposing caching improvements, which is why it is shaped around a single large cacheable block.

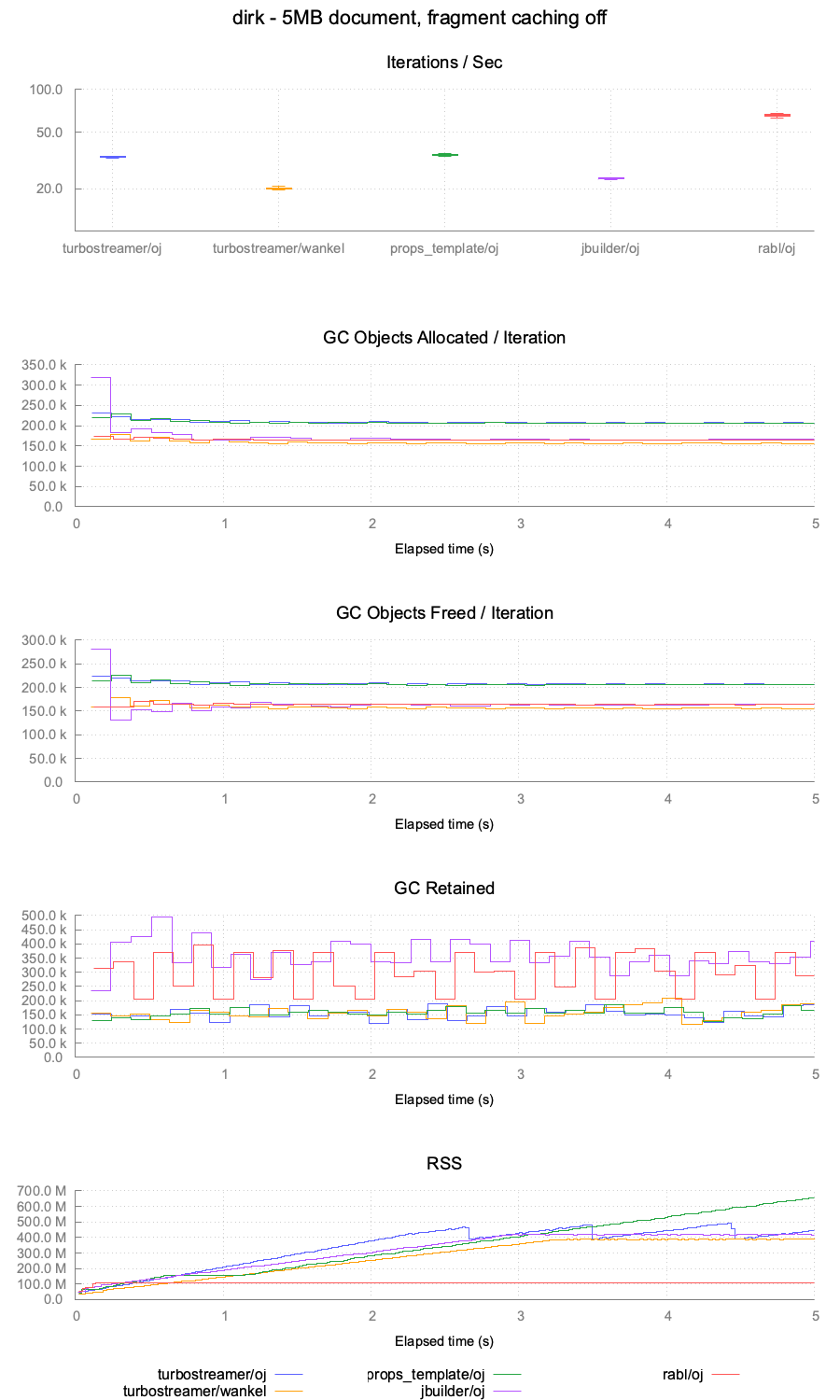

Rebuilt every iteration, RABL leads by about 2x (66.3 i/s against TurboStreamer's 33.6): one Oj pass over a finished object graph beats roughly 51,000 Ruby-level DSL calls. The builder DSLs are again close, and closer than at 22KB — here props_template (34.9) edges TurboStreamer's Oj encoder (33.6), with jbuilder at 23.6. Note the RSS panel, where building the document costs every implementation several hundred MB.

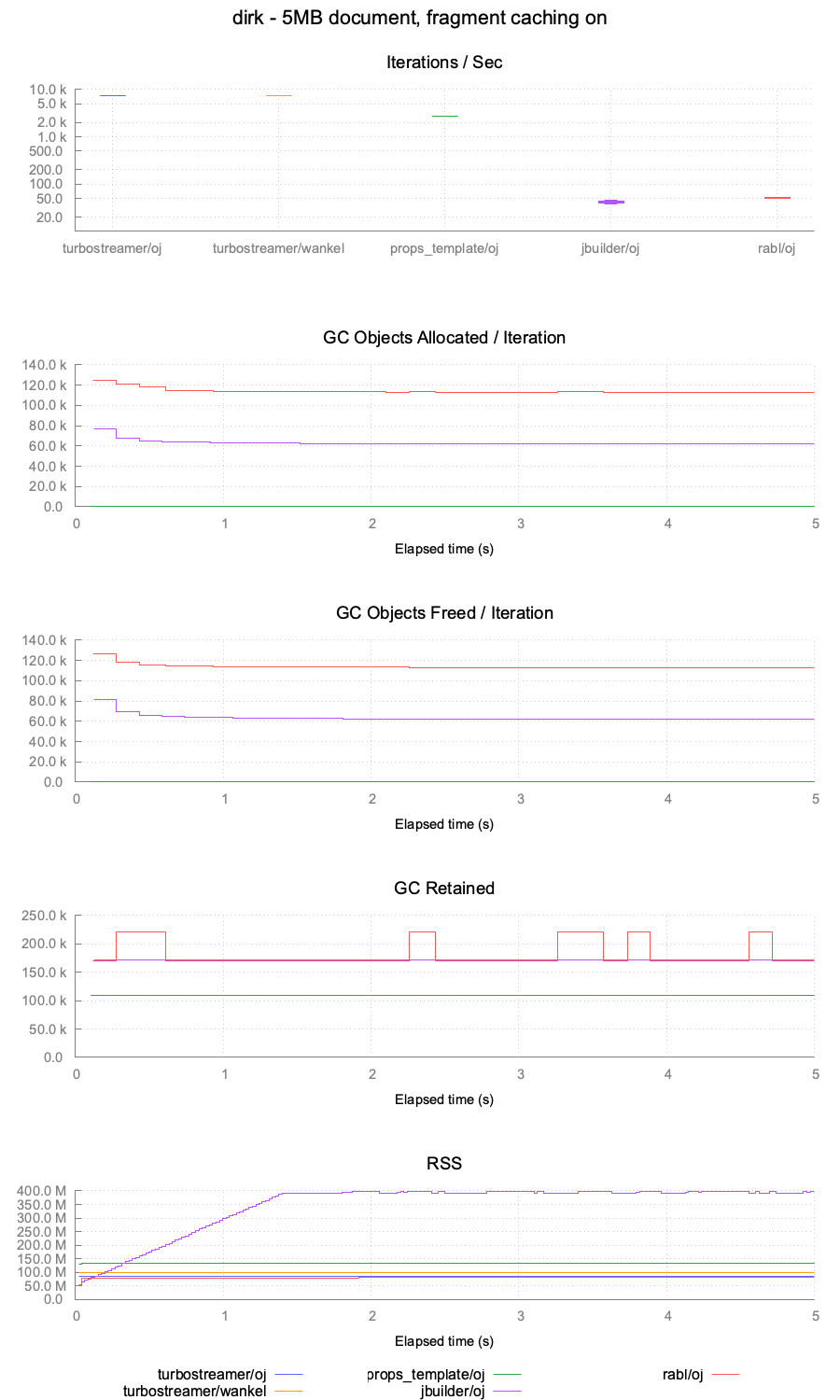

With the fragment cached the same split appears and widens, because the larger the cached fragment the more the re-serialization costs. The two byte-cachers re-emit 5MB of cached bytes — TurboStreamer 7,210 i/s, props_template 2,731 — while RABL (50.9) and jbuilder (42.4) deserialize and re-serialize 5MB of cached objects, leaving two orders of magnitude between the groups. At this size a cache hit is actually slower for RABL than rebuilding from scratch, 50.9 against 66.3 — the effect reported against jbuilder in jbuilder#259, reproduced here. The gap between the two byte-cachers also opens up at this size, 2.64x against 1.18x on the 22KB document. The RSS panel makes the deserialization cost visible: jbuilder climbs to ~400MB while completing the fewest iterations, Marshal-loading the 5MB cached hash on every hit, while TurboStreamer holds around 140MB while producing two orders of magnitude more output.

The two suites above measure document shapes against RABL and jbuilder. This one is alba's own benchmark, vendored unchanged apart from reporting both encoders, and it is the suite whose figures get quoted at TurboStreamer: alba's README and props_template's both cite results against turbostreamer 1.11.0, which predates 2.0.

100 posts with comments and commenter names, rendered from ActiveRecord. It is benchmark-ips over seventeen serializers with no caching involved, so it measures the builders themselves.

Run of 2026-09-10, ruby 4.0.5 +YJIT +PRISM, Oj.optimize_rails enabled, alba 4.0.0, props_template 1.0.1, oj 3.17.6, wankel 0.6.2.1:

                   panko:      918.9 i/s
        turbostreamer_oj:      725.6 i/s - 1.27x  slower
            barley_cache:      721.4 i/s - 1.27x  slower
          props_template:      683.9 i/s - 1.34x  slower
                  barley:      651.1 i/s - 1.41x  slower
                    alba:      635.5 i/s - 1.45x  slower
                jbuilder:      534.0 i/s - 1.72x  slower
                    rabl:      285.8 i/s - 3.21x  slower
    turbostreamer_wankel:      264.9 i/s - 3.47x  slower

benchmark-memory, same run:

               panko:     258858 allocated
      props_template:     457698 allocated - 1.77x more
    turbostreamer_oj:     466120 allocated - 1.80x more
turbostreamer_wankel:     550004 allocated - 2.12x more
                alba:     817961 allocated - 3.16x more
            jbuilder:     946201 allocated - 3.66x more

The Oj encoder is second only to panko, which is a C extension rather than a builder DSL, and it is ahead of both props_template and alba — the reverse of upstream's published ordering, which was measured against 1.11.0. Allocations moved the same way: 641,720 for 1.11.0 in that table against 466,120 here, now level with props_template.

The Wankel encoder is a long way behind on this shape — 265 i/s against 726, and 550k allocated against 466k. Oj is the encoder TurboStreamer picks when both are installed, and on these numbers that is the right default. Wankel also does not escape <, > and &, which the railtie's Oj configuration does, so its output is not safe to embed in a <script> tag without escaping it yourself.

Absolute numbers here are not comparable with upstream's, taken on different hardware and a different Ruby — panko scores 919 i/s here against 1267 there — so only the ordering within a single run means anything. Three consecutive runs agreed on the ordering and to within 1.5% on turbostreamer_oj and 4% on turbostreamer_wankel.

TurboStreamer is a fork of Jbuilder, built of what they have accopmlished and with out Jbuilder TurboStreamer would not be here today. Thanks to everyone who's been a part of Jbuilder!

• David Heinemeier Hansson - http://david.heinemeierhansson.com/ - for writing Jbuidler!!
• Pavel Pravosud - http://pavel.pravosud.com/ - for maintaing and pushing Jbuilder forward

And to everyone who has contributed to TurboStreamer since the fork:

• PikachuEXE - for writing the Oj encoder, implementing merge!, fixing the caching output bugs, and adding the RABL benchmark
• Stephen Demjanenko - for streaming without requiring a layout, and for tuning the Oj StreamWriter buffer size
